Motion Capture
Cameras
Tipp
PrimeX 120
11.085,08 €*
12 MP resolution | +/- 0.1 mm 3D accuracy1 | 300 FPS native frame rate | 1000 FPS max frame rate2 The Primex 120 camera delivers exceptional precision, tracking markers at up to 300 feet with less than +/-0.10mm positional error. Its custom-engineered 18mm “fast glass” lens offers low distortion, high light transmission, and a broad 51° x 39° FOV, expandable to 65° x 51° with the 120W model. It supports passive and active markers, synchronized grayscale video, and flexible system configurations for high-accuracy 3D tracking in any environment. 1.
3D accuracy referenced is typical for a 30'×30' (9m×9m) tracking area.
Range is estimated using a 14 mm marker with cameras at an exposure of
800, gain of 6, and the lowest f-stop. 2.
Frame rate
Resolution
FOV (standard 24mm lens)
FOV (wide 18mm lens)
300 fps
4096×3072
51°×39°
65°×51°
480 fps
4096×1904
51°×25°
65°×33°
840 fps
2048×1072
51°×14°
65°×19°
1000 fps
2048×896
51°×12°
65°×16°
Tipp
PrimeX 120W
11.589,00 €*
12 MP resolution | +/- 0.1 mm 3D accuracy1 | 300 FPS native frame rate | 1000 FPS max frame rate2 The Primex 120 camera delivers exceptional precision, tracking markers at up to 300 feet with less than +/-0.10mm positional error. Its custom-engineered 18mm “fast glass” lens offers low distortion, high light transmission, and a broad 65° x 51° FOV. It supports passive and active markers, synchronized grayscale video, and flexible system configurations for high-accuracy 3D tracking in any environment. 1.
3D accuracy referenced is typical for a 30'×30' (9m×9m) tracking area.
Range is estimated using a 14 mm marker with cameras at an exposure of
800, gain of 6, and the lowest f-stop. 2.
Frame rate
Resolution
FOV (wide 18mm lens)
300 fps
4096×3072
65°×51°
480 fps
4096×1904
65°×33°
840 fps
2048×1072
65°×19°
1000 fps
2048×896
65°×16°
PrimeX 41
6.549,86 €*
4.1 MP resolution | +/- 0.10 mm 3D accuracy1 | 180 FPS native frame rate | 250+ FPS max frame rate2 The Primex 41 is the pinnacle of large-scale 3D measurement systems, offering over 100 feet of passive marker range and 150 feet with Signature Pulse Active3 technology. Its precision, with positional errors less than 0.10 mm and rotational errors under 0.5°, is unmatched, making it ideal for large-scale tracking and high-speed motion capture.This camera features intuitive design, custom-engineered “fast glass” lenses, and optional wide-view configurations to maximize field of view and accuracy. Integrated image processing, outdoor capture capability, and synchronized reference video recording provide a seamless user experience, while flexible synchronization options ensure compatibility with professional setups. A robust SDK supports OEM applications, enabling customized integrations for diverse industries.1.
3D accuracy referenced is typical for a 30'×30' (9m×9m) tracking area.
Range is estimated using a 14 mm marker with cameras at an exposure of
800, gain of 6, and the lowest f-stop. 2.
Frame rate
Resolution
FOV (standard 12.5mm lens)
180 fps
2048×2048
51°×51°
240 fps
2048×1440
51°×37°
500 fps
2048×720
51°×18°
1000 fps
2048×352
51°×9°
3.
Signature Pulse Active markers provide their own unique ID, resulting in
100% error free labels. When introduced into the tracking area, the LED
markers are acquired in < 0.1 seconds. Unique marker placements
based on spatial separation, normally required for passive marker
tracking, are not required for distinguishing multiple rigid bodies.
PrimeX 41W
6.650,65 €*
4.1 MP resolution | +/- 0.30 mm 3D accuracy | 180 FPS native frame rate The Primex 41W is the pinnacle of large-scale 3D measurement systems, offering over 100 feet of passive marker range and 150 feet with Signature Pulse Active2 technology. Its precision, with positional errors less than 0.10 mm and rotational errors under 0.5°, is unmatched, making it ideal for large-scale tracking and high-speed motion capture.This camera features intuitive design, custom-engineered “fast glass” lenses, and optional wide-view configurations to maximize field of view and accuracy. Integrated image processing, outdoor capture capability, and synchronized reference video recording provide a seamless user experience, while flexible synchronization options ensure compatibility with professional setups. A robust SDK supports OEM applications, enabling customized integrations for diverse industries.1.
3D accuracy referenced is typical for a 30'×30' (9m×9m) tracking area.
Range is estimated using a 14 mm marker with cameras at an exposure of
800, gain of 6, and the lowest f-stop. 2.
Signature Pulse Active markers provide their own unique ID, resulting in
100% error free labels. When introduced into the tracking area, the LED
markers are acquired in < 0.1 seconds. Unique marker placements
based on spatial separation, normally required for passive marker
tracking, are not required for distinguishing multiple rigid bodies.

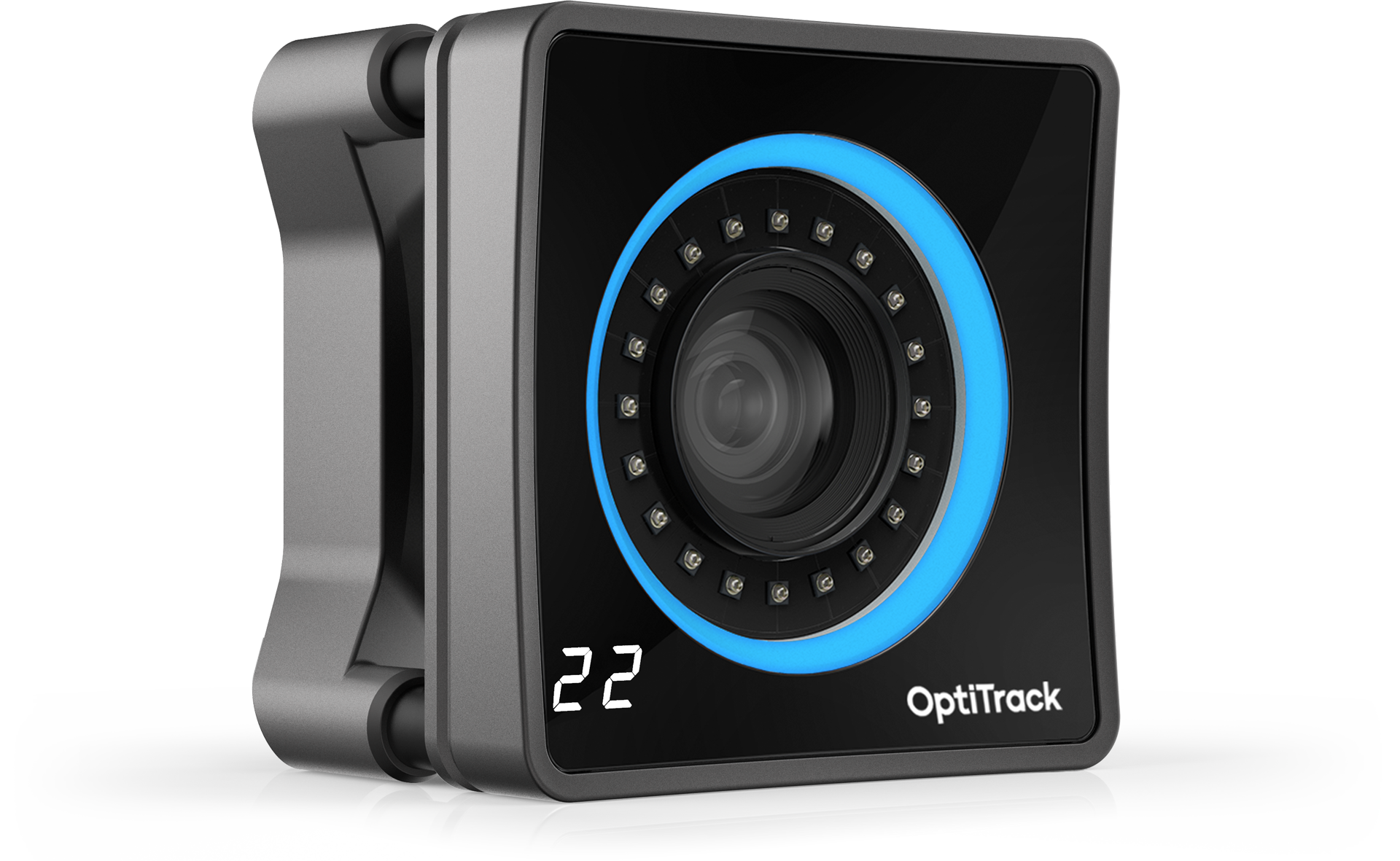

PrimeX 22
4.030,30 €*
2.2 MP resolution | +/- 0.15 mm 3D accuracy1 | 360 FPS native frame rate | 500+ FPS max frame rate2
The Primex 22 blends range, speed, and field of view (FOV) to deliver edge-to-edge coverage with exceptional 3D accuracy. Designed with precision and intuitive usability, it features a 360 FPS frame rate, sub-0.15 mm positional accuracy, and 0.5° rotational error. Its ultra-wide-angle format and advanced "fast glass" 6.8mm lenses provide unmatched capture volumes in smaller spaces or expansive setups.The camera's advanced onboard processing ensures low latency and high accuracy, while easy setup tools and robust synchronization options, including Genlock and Time Code, make it ideal for professional motion capture and OEM integrations. It’s the perfect solution for capturing precise, high-quality 3D data in diverse environments.1. 3D accuracy referenced is typical for a 30'×30' (9m×9m) tracking area.
Range is estimated using a 14 mm marker with cameras at an exposure of
800, gain of 6, and the lowest f-stop.
2.
Frame rate
Resolution
FOV (standard 6.8mm lens)
360 fps
2048×1088
79°×47°
500 fps
2048×776
79°×35°
1000 fps
2048×384
79°×18°
PrimeX 13
2.518,56 €*
1.3 MP resolution | +/- 0.20 mm 3D accuracy1 | 240 FPS native frame rate | 1000 FPS max frame rate2
The Primex 13 offers high-speed, precise tracking for medium-sized areas, with a compact design and exceptional 3D accuracy. Featuring a 240 FPS frame rate, sub-0.20 mm positional accuracy, and 0.5° rotational error, it supports both active and passive markers. Its custom "fast glass" M12 lenses, filter options, and advanced synchronization capabilities make it ideal for professional applications. Easy setup tools, powerful on-board processing, and an open SDK enhance usability and integration, making it the next generation of the most widely used motion tracking camera in history.
1. 3D accuracy referenced is for Primex
13 and typical for a 30'×30' (9m×9m) tracking area. Range is estimated
using a 14 mm marker with cameras at an exposure of 800, gain of 6, and
the lowest f-stop.
2.
Frame rate Resolution FOV (5.5mm lens)240 fps1280×102456°×45°360 fps1040×83249°×40°500 fps880×70442°×34°1000 fps624×49630°×24°

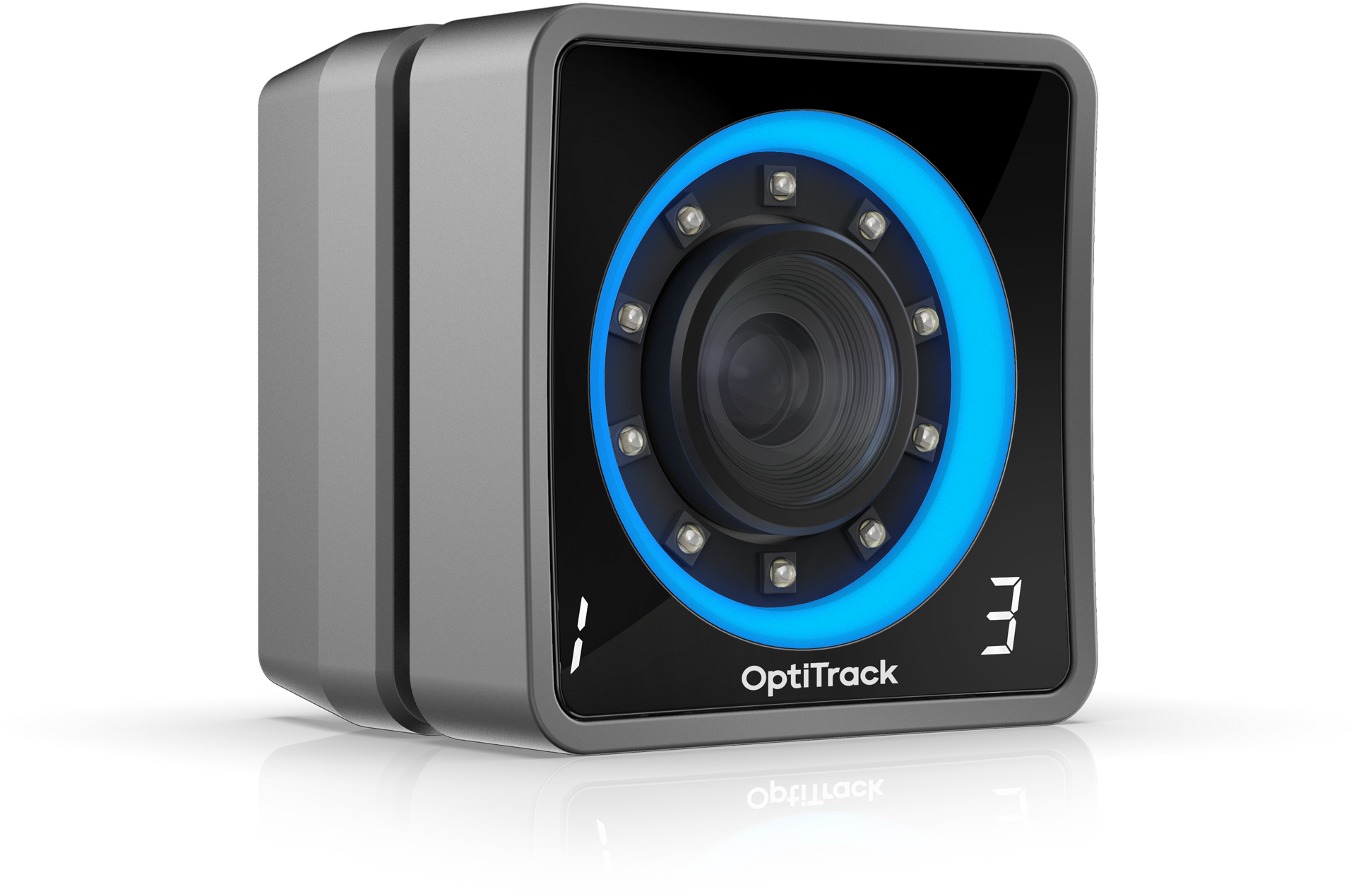

PrimeX 13W
2.518,56 €*
1.3 MP resolution | +/- 0.20 mm 3D accuracy1 | 240 FPS native frame rate | 1000 FPS max frame rate2 Optimized for compact and large-scale spaces, the Primex 13W offers high-speed tracking at 240 FPS with sub-0.3 mm accuracy and 0.5° rotational error. Its compact 2.7" design, IR illumination, and powerful on-board processing support both active and passive markers. Custom M12 lenses, filter switching, and mix-and-match compatibility with Prime cameras ensure precise 3D data in any environment, while advanced synchronization options and an SDK enable seamless integration into professional setups.
1.
3D accuracy referenced is for Primex 13 and typical for a 30'×30' (9m×9m) tracking area. Range is estimated using a 14 mm marker with cameras at an exposure of 800, gain of 6, and the lowest f-stop.2.
Frame rate Resolution FOV (5.5mm lens)240 fps1280×102456°×45°360 fps1040×83249°×40°500 fps880×70442°×34°1000 fps624×49630°×24°
Prime Color
Ab
1.661,91 €*
250 FPS | 1080p Resolution | H.264 Compression
Motion capture has never looked better. The Prime Color is fully image
and color corrected to deliver a pristine reference image. Fast enough
to capture any motion you need, in any environment.
The Prime Color camera delivers cinema-quality, color-corrected video at up to 1080p and 250 FPS, with advanced compression for low latency and high quality. It supports flexible resolutions (540p at 500 FPS) and multiple lens options, enabling creative and technical adaptability. Features include Ethernet-powered PoE+, seamless syncing with up to 8 cameras, and compatibility with OptiTrack’s Motive software and eStrobe lighting for precision and efficiency.

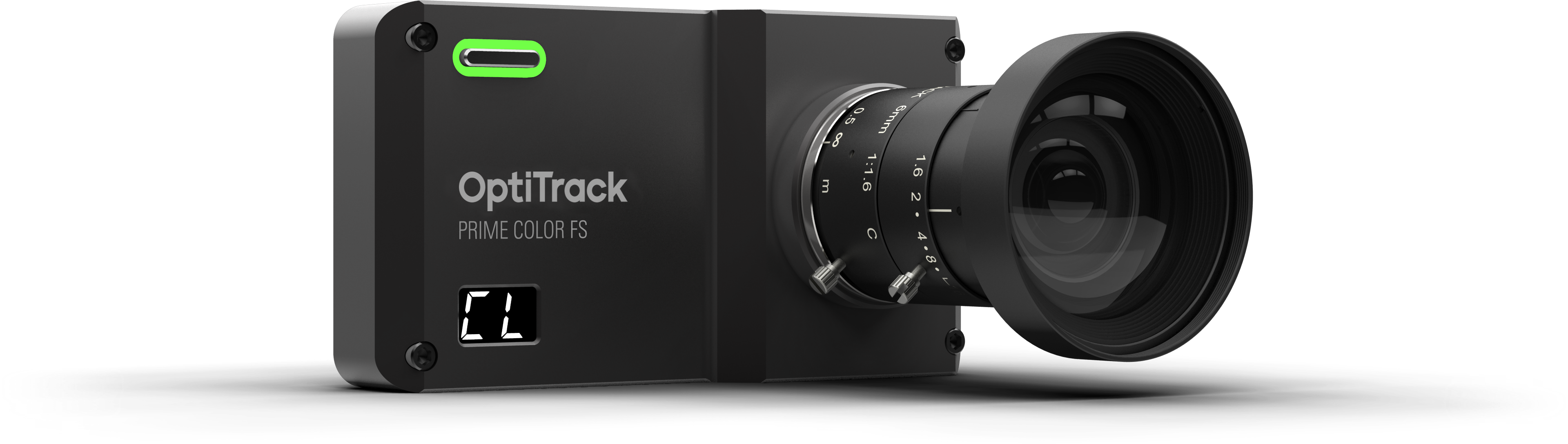

Prime Color FS
Ab
2.212,18 €*
250 FPS | 1080p Resolution | H.264 Compression
The Prime Color camera delivers cinema-quality, color-corrected video at up to 1080p and 250 FPS, with advanced compression for low latency and high quality. It supports flexible resolutions (540p at 500 FPS) and multiple lens options, enabling creative and technical adaptability. Features include Ethernet-powered PoE+, seamless syncing with up to 8 cameras, and compatibility with OptiTrack’s Motive software and eStrobe lighting for precision and efficiency.
With a software operated filter switcher to enable calibration alongside
other OptiTrack cameras, the Prime Color FS has the ability to overlay
precision 3D motion capture data on the video image for data
verification and CG reference for human movement studies.
Slim Cameras
Discreet solution for active markers.
Tipp
SlimX 120
8.061,60 €*
12.0 MP resolution | +/- 0.1 mm 3D accuracy1 | 300 FPS native frame rate | 1000 FPS max frame rate2
The Slimx 120 offers unmatched precision with 300 FPS capture, global shutter, and custom-designed low-distortion lenses. It tracks smaller markers at greater distances and pairs with other OptiTrack cameras for optimal configurations. Features include on-camera status LEDs, grayscale video with 3D overlay, Genlock/Time Code sync, and integration with Motive software for advanced motion capture workflows. 1.
3D accuracy referenced is typical for a 30'×30' (9m×9m) tracking area.
Range is estimated using a 14 mm marker with cameras at an exposure of
800, gain of 6, and the lowest f-stop. 2.
Frame rate
Resolution
FOV (standard 24mm lens)
FOV (wide 18mm lens)
300 fps
4096×3072
51°×39°
65°×51°
480 fps
4096×1904
51°×25°
65°×33°
840 fps
2048×1072
51°×14°
65°×19°
1000 fps
2048×896
51°×12°
65°×16°
Tipp
SlimX 41
4.332,65 €*
4.1 MP resolution | +/- 0.1 mm 3D accuracy1 | 180 FPS native frame rate | 1000 FPS max frame rate2
The Slimx 41 delivers precision active tracking with an over 150’ range, compact design, and low-distortion “fast glass” lenses for crisp 3D accuracy. Its customizable lenses offer varying FOVs, while on-camera status LEDs and full grayscale reference video enhance usability. Ideal for VR, robotics, and cinematic production, it integrates seamlessly with OptiTrack’s Motive software and supports OEM applications with an open SDK. 1.
3D accuracy referenced is typical for a 30'×30' (9m×9m) tracking area.
Range is estimated using a 14 mm marker with cameras at an exposure of
800, gain of 6, and the lowest f-stop. 2.
Frame rate
Resolution
FOV (standard 12.5mm lens)
180 fps
2048×2048
51°×51°
240 fps
2048×1440
51°×37°
500 fps
2048×720
51°×18°
1000 fps
2048×352
51°×9°

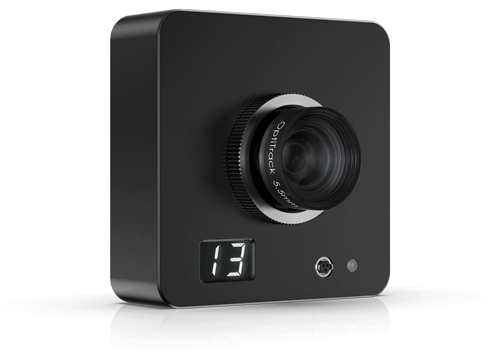

SlimX 13
1.712,30 €*
1.3 MP resolution | +/- 0.30 mm 3D accuracy1 | 240 FPS native frame rate | 1000 FPS max frame rate2
With a compact 2.7" design and lightweight 12-ounce build, the Slimx 13 excels in VR, AR, and high-speed tracking at up to 240 FPS. Custom M12 lenses and 850nm IR illumination ensure precise 3D data, while mix-and-match compatibility with Prime cameras enables versatile configurations. Features like software-selectable filters, on-camera status indicators, and seamless OEM integration make it ideal for both professional setups and computer vision applications. 1.
3D accuracy referenced is typical for a 30'×30' (9m×9m) tracking area.
Range is estimated using a 14 mm marker with cameras at an exposure of
800, gain of 6, and the lowest f-stop. 2.
Frame rate
Resolution
FOV (3.5mm lens)
240 fps
1280×1024
82°×70°
360 fps
1040×832
71°×59°
500 fps
880×704
62°×52°
1000 fps
624×496
46°×38°

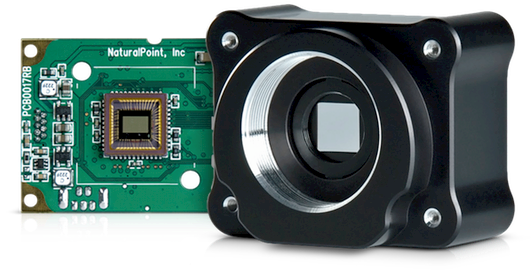

Slim 3U
Ab
352,84 €*
0.3 MP resolution | +/- 1 mm 3D accuracy1 | 120 FPS native frame rate
The Slim 3U camera is a compact, board-level solution for computer vision and custom tracking, offering 120 FPS global shutter capture and sub-millimeter accuracy. It supports pre-processed imaging modes like MJPEG-compressed grayscale for efficient scaling, and raw grayscale for precision. Customizable components include lens options, filters, and cases, making it ideal for tailored applications. 1.
Flex 13
Ab
1.107,60 €*
1.3 MP resolution | 8.3 ms latency | +/- 0.20 mm 3D accuracy1 | 120 FPS native frame rate
The Flex 13 offers professional-grade motion capture with 1.3 MP resolution, 120 FPS, and a 56° field of view, ensuring sub-0.5 mm tracking precision. Its efficient on-camera processing supports scalable imaging, while features like interchangeable M12 lenses and infrared lighting optimize capture environments. Perfect for AAA and indie studios, it combines affordability with robust performance for applications ranging from multi-actor capture to computer vision integration.
1.3D accuracy referenced is typical for a 30'×30' (9m×9m) tracking area.
Range is estimated using a 14 mm marker with cameras at an exposure of
800, gain of 6, and the lowest f-stop.

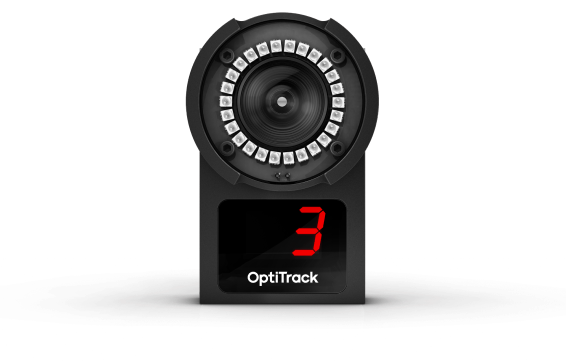

Flex 3
Ab
664,16 €*
0.3 MP resolution | 10 ms latency | +/- 0.50 mm 3D accuracy1 | 100 FPS native frame rate
The OptiTrack Flex 3 is a compact, high-performance motion capture camera offering 0.3 MP resolution, 10 ms latency, +/- 0.50 mm 3D Accuracy and 100 FPS capture speed. Its interchangeable M12 lenses and infrared light provide flexible, precise tracking in any environment. Start small and expand as needed with modular camera bundles, all with continuous, automatic calibration.
3D accuracy referenced is typical for a 30'×30' (9m×9m) tracking area.
Range is estimated using a 14 mm marker with cameras at an exposure of
800, gain of 6, and the lowest f-stop.
1.

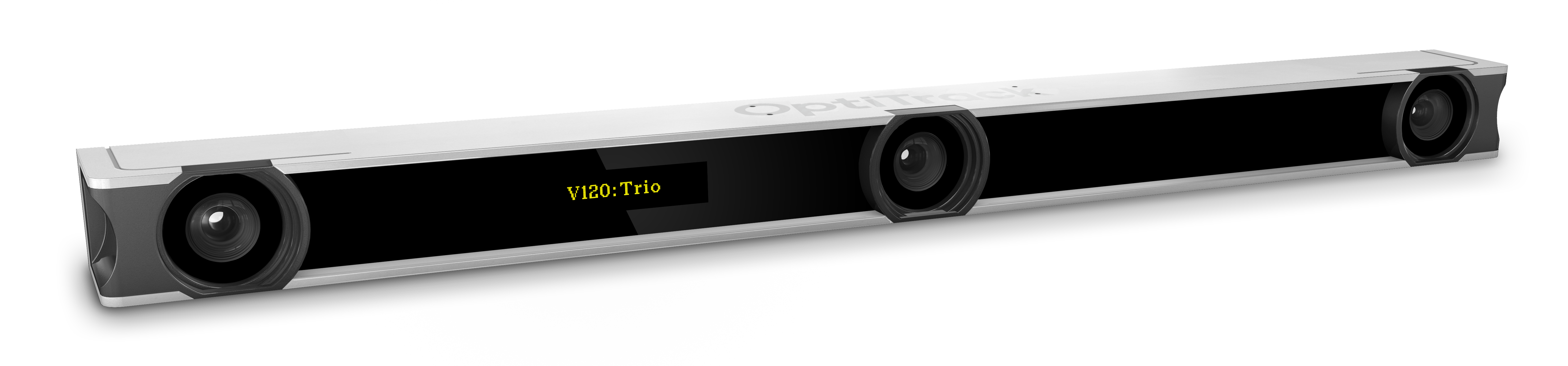

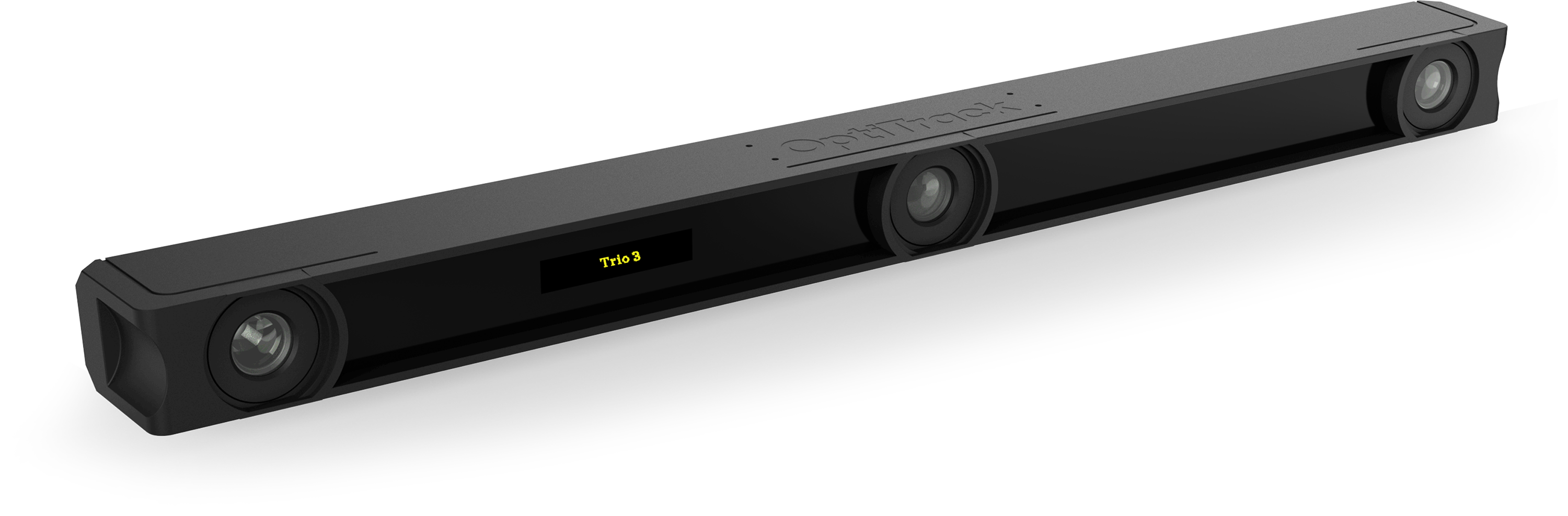

V120:Trio
4.030,30 €*
The V120:Trio offers out-of-the-box motion tracking with pre-calibrated, plug-and-play 6DoF tracking in a compact, portable form factor. It supports high-speed capture at 120 FPS using three VGA sensors, advanced on-camera image processing, and Filter Switcher technology for grayscale and visible-spectrum imaging. The bundled Motive:Tracker software enables real-time data streaming, recording, playback, and export, with support for VRPN, trackd, and NatNet SDK for seamless application integration. Additional features include external synchronization, grayscale video compression, and compatibility with Insight VCS virtual camera plugins, making it a versatile and affordable solution for professional motion tracking and OEM integration.

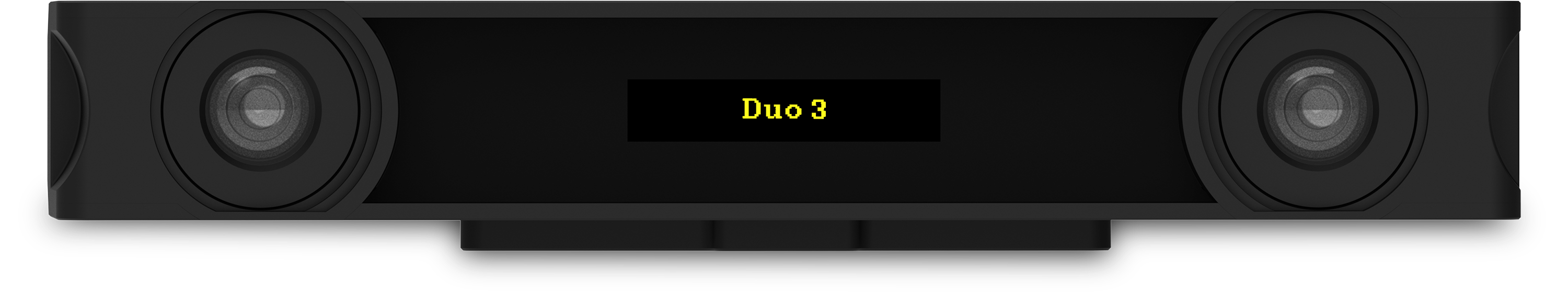

V120:Duo
3.022,47 €*
The V120:Duo delivers plug-and-play motion tracking with dual-camera 6DoF object tracking in a compact and portable design. Pre-calibrated for out-of-the-box use, it provides leading optical tracking accuracy and flexibility. The system supports high-speed capture at 120 FPS using two VGA sensors and advanced on-camera image processing for efficient tracking.Bundled with Motive:Tracker software, the Duo enables real-time data streaming, recording, playback, and export in formats like C3D and CSV. The software supports protocols like VRPN, trackd, and NatNet SDK for seamless integration.Key features include adjustable camera settings, external synchronization for hardware compatibility, and sub-millimeter accuracy. Its portable form factor makes it ideal for rapid deployment and desktop use, while the Motive:Tracker API facilitates seamless OEM integration for custom applications.
