8x PrimeX 22 Motive:Tracker Set VR

35.345,48 €*

Preise exkl. MwSt. zzgl. Versandkosten

Produktnummer: PRX22-MT-8VR

PDF Angebot erstellen

PDF Angebot für diesen Artikel erstellen Tip: Legen Sie mehrere Artikel in den Warenkorb und fordern Sie dort das Angebot an. Eingeloggte Benutzer erhalten ein individualisiertes Angebot.

Produktinformationen "8x PrimeX 22 Motive:Tracker Set VR"

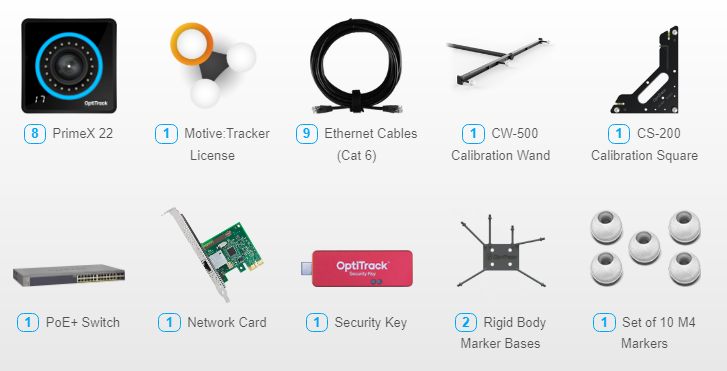

Dieses Set beinhaltet alle aufgelisteten Komponenten:

8 PrimeX 22
1 Motive:Tracker License
9 Ethernet Cables (Cat 6)
2 Rigid Body Marker Bases
1 CS-200 Calibration Square
1 PoE+ Switch
1 Network Card
1 Security Key
1 CW-500 Calibration Wand
1 Set of 10 M4 Markers

0 von 0 Bewertungen

Bewerten Sie dieses Produkt!

Teilen Sie Ihre Erfahrungen mit anderen Kunden.

Anmelden

Ihre E-Mail-Adresse

Ihr Passwort

Bewertungen nur in der aktuellen Sprache anzeigen.

Keine Bewertungen gefunden. Teilen Sie Ihre Erfahrungen mit anderen.

Components

PrimeX 22

2.2 MP resolution | +/- 0.15 mm 3D accuracy1 | 360 FPS native frame rate | 500+ FPS max frame rate2 The Primex 22 blends range, speed, and field of view (FOV) to deliver edge-to-edge coverage with exceptional 3D accuracy. Designed with precision and intuitive usability, it features a 360 FPS frame rate, sub-0.15 mm positional accuracy, and 0.5° rotational error. Its ultra-wide-angle format and advanced "fast glass" 6.8mm lenses provide unmatched capture volumes in smaller spaces or expansive setups.The camera's advanced onboard processing ensures low latency and high accuracy, while easy setup tools and robust synchronization options, including Genlock and Time Code, make it ideal for professional motion capture and OEM integrations. It’s the perfect solution for capturing precise, high-quality 3D data in diverse environments.1. 3D accuracy referenced is typical for a 30'×30' (9m×9m) tracking area. Range is estimated using a 14 mm marker with cameras at an exposure of 800, gain of 6, and the lowest f-stop. 2. Frame rate Resolution FOV (standard 6.8mm lens) 360 fps 2048×1088 79°×47° 500 fps 2048×776 79°×35° 1000 fps 2048×384 79°×18°

4.030,30 €*

Ethernet Cable - Cat 6a

Kabellänge: 50 feet (15.2 m)

Category 6 Ethernet cables of various lengths for use with Ethernet camera systems. Shielded CAT5E, CAT6 or CAT6A Ethernet cables are recommended for harsh EMI environments and system CE compliance. Shielded cables can be purchased at numerous online retailers, or as special order items through OptiTrack. Compatible Cameras: PRIME SERIES S250E 3 feet (0.9 m) 14 feet (4.3 m) 30 feet (9.1 m) 50 feet (15.2 m) 100 feet (30.5 m)

Varianten ab 10,08 €*

30,23 €*

Ethernet Cable - Cat 6a

Kabellänge: 30 feet (9.1 m)

Varianten ab 10,08 €*

22,17 €*

Motive:Tracker 3.x Neulizenz

Rigid body tracking for drones, robots, HMDs for VR, AR devices, live action cameras, virtual cameras and more. perpetual license with one year of updates Requires a Security Key

1.006,82 €*

CW-500 Calibration Wand Kit

Calibration Wands This versatile OptiTrack Calibration Wand milled from high-grade aluminium is ideal for large and medium volumes with multiple configurable marker sets to adapt to your needs. The CW-500 Calibration Wand Kit includes: Wand Handle: ¼-20 mount Handle extension thread Three M4 15.9 mm (5/8") markers with compatible posts for 500 mm position Three M4 12.7 mm (1/2") markers with compatible posts for 250 mm position Adjustable: vertical or horizontal wanding position Storage Box - foam liner

351,73 €*

CS-200 Calibration Square

Calibration Squares - Micron Series The CS-200 Calibration Square was designed for flexibility and accuracy during system calibration.

170,32 €*

Security Key

The Security Key is a mobile platform for your Motive 3 software license, allowing the same license to be used on different computers. For example, if you have your Motive setup on one computer, but use Motive for editing motion capture data on another computer, you can simply move the Security Key to the workstation you are using at the time. Software licenses must be locked to a USB Security Key for most system types. If you are purchasing a security key for an existing system, read our Licensing FAQs or contact support before proceeding.

150,17 €*

D-LINK DGS-1250-28XMP-6KV

28-port Gigabit PoE/PoE+ switch for use with Ethernet cameras. Supports up to: 23 PoE cameras (Primex 13, Primex 13W, Slimx 13) or 12 PoE+ cameras (Primex 41, Primex 22) per switch.

936,27 €*

Tp-Link 10Gb Network Adapter TX401

An add-on network card for use in configurations that use a uplink switch.

211,64 €*

Rigid Body Marker Base

Black fiber filled nylon plastic rigid body has six M4 threaded posts.

6,05 €*

Marker: 12.7mm (1/2), M4 thread - 10 pack

Precision Spheres with 3M 7610 Reflective Tape and M4 Threads. 10 pack.

56,44 €*
