Motive:Tracker 3.x Neulizenz
Produktinformationen "Motive:Tracker 3.x Neulizenz"

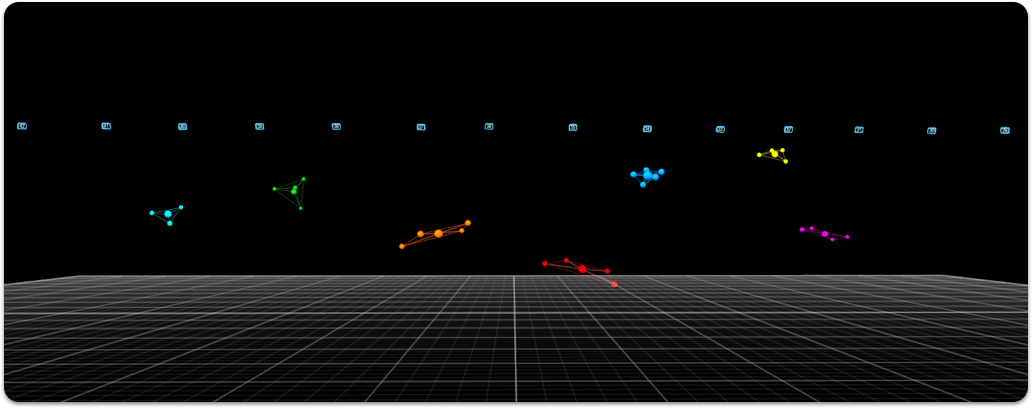

Rigid body tracking for drones, robots, HMDs for VR, AR devices, live action cameras, virtual cameras and more.
-
perpetual license with one year of updates
- Requires a Security Key
Anmelden
What is Motive?
Motive software pairs with OptiTrack cameras to track and capture the motion of small retroreflective markers attached to people and objects, and delivers real-time motion data with industry-leading accuracy. Motive offers simple setup, supports larger volumes and produces clean data. Tracking data is used in numerous ways from robotics and movement sciences to video game animation, cinematic virtual production and location-based virtual reality.
Motive 3.2 is here! Calibration files are now human readable, update bone positions for skeletons without re-scaling the bones, sensor fusion improvements and more.

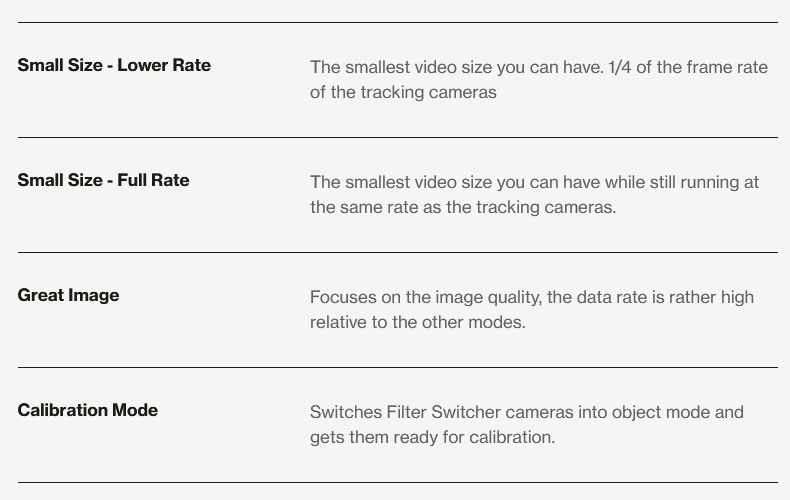

Pre-Defined Settings For
Prime Color Cameras
Skeletal Solver

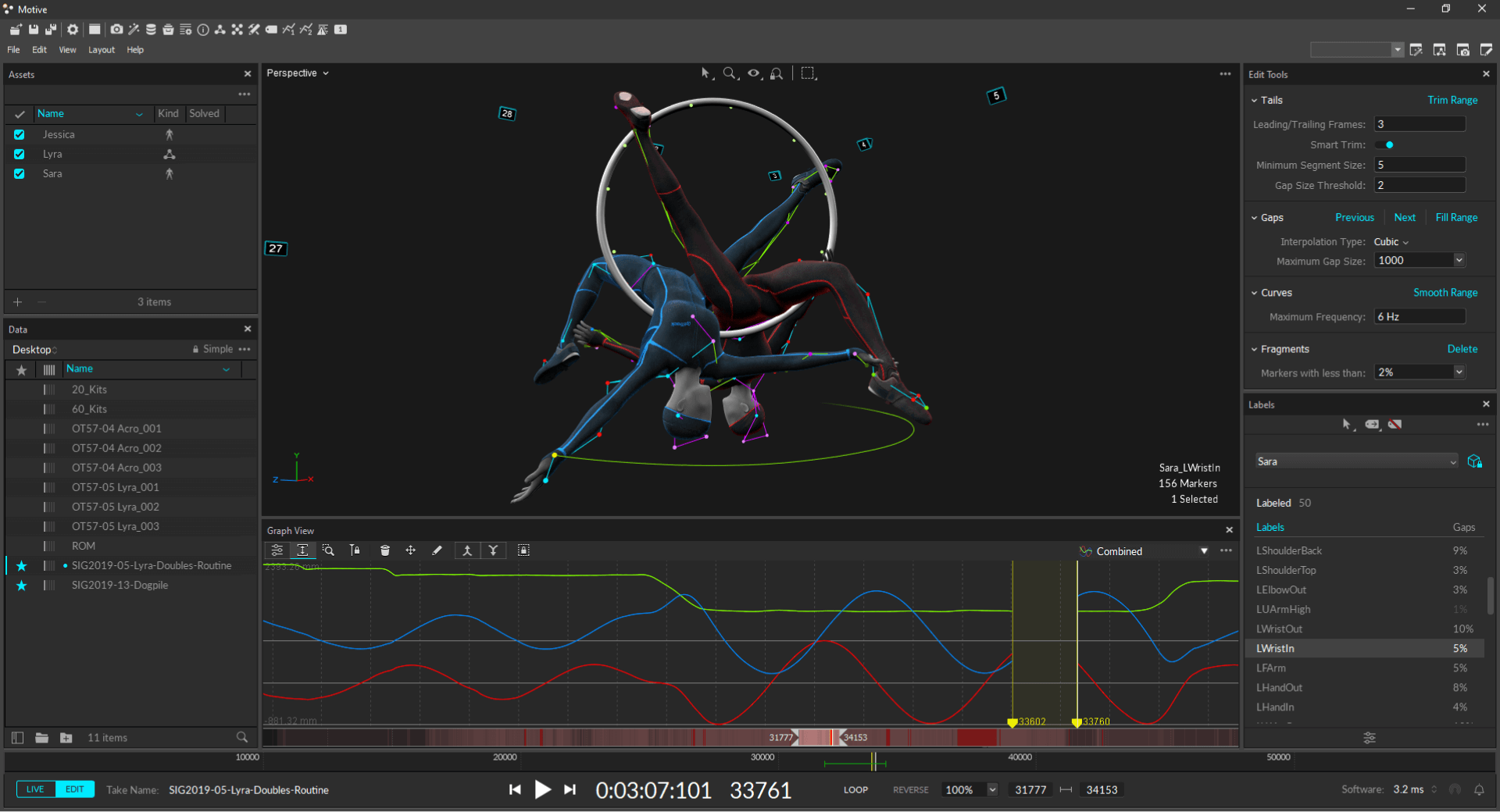

Vastly improved skeletal tracking precision. Robust, accurate bone tracking - even during heavy occlusion of markers
What's a solver?
“Solver” in human motion tracking terms refers to the programmatic process of estimating the pose (6 DoF) of each bone, deduced by the actual measured markers, at each frame of measurement.
A precision solver, like that developed for Motive 3.0, accurately defines the skeleton movement of the tracked subject(s) which yields higher confidence and more nuanced performance capture for character animation.
A robust solver will also perform precision marker labeling and skeletal tracking even when many markers are hidden from cameras or lost, providing more reliable tracking data and vastly reduced editing time across all applications.

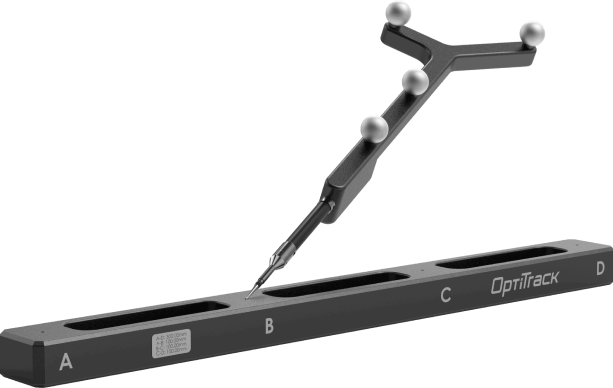

Passive markers - or retroreflective markers, including spheres, hemispheres, and even flat reflective discs, are easily tracked with OptiTrack’s precision, long range cameras.
Signature Pulse Active invisible IR LEDs, enable 100% error free marker ID’s, low latency data delivery and <0.1s acquisition time. It’s become the benchmark for low latency VR tracking, ground truth systems for AR, and high subject count robotics applications such as drone swarms.

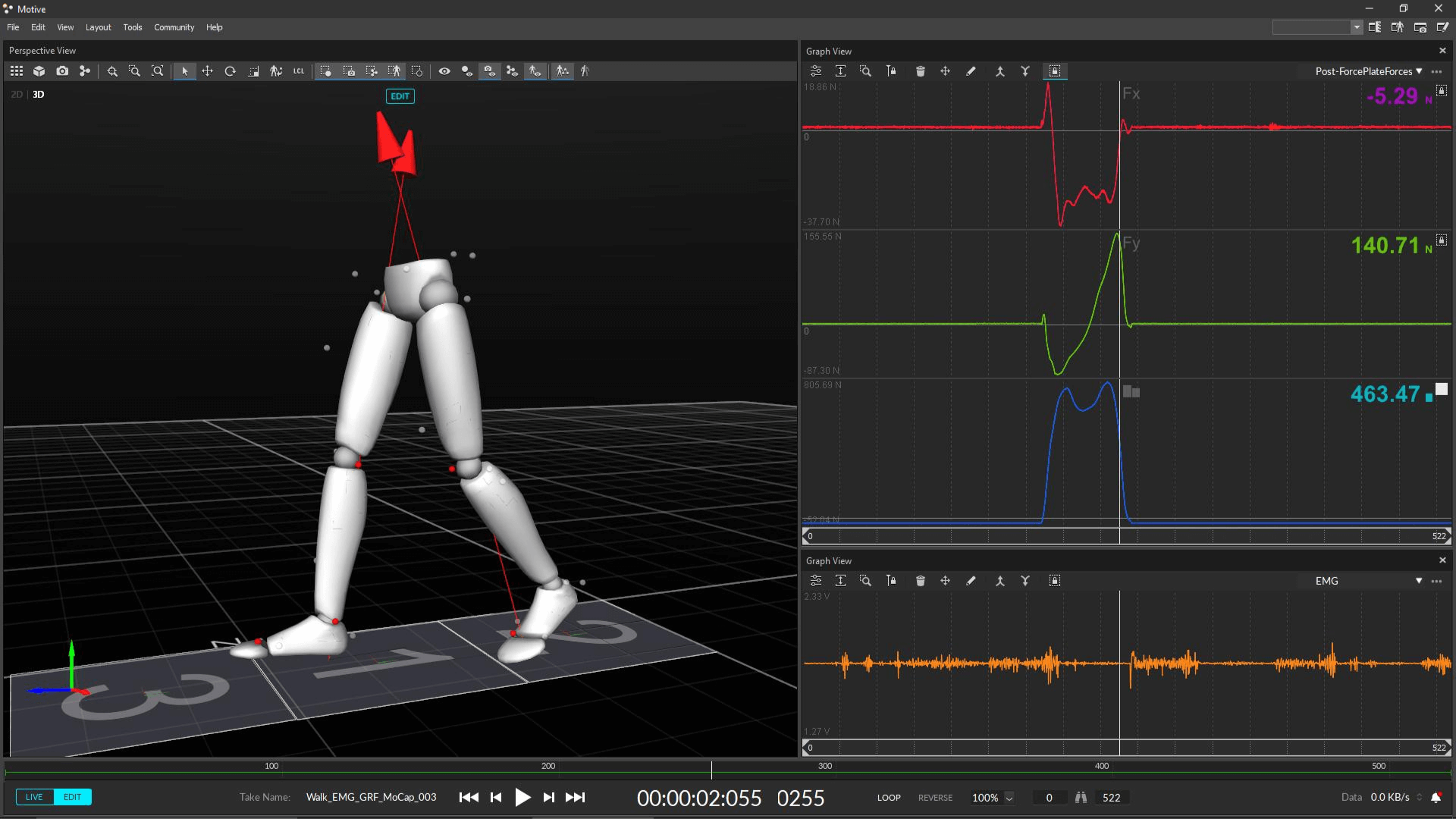

Forceplate and EMG integration. Native, plug-and-play support for all major digital force plates (AMTI, Bertec and Kistler), Delsys EMG, and analog devices, providing researchers the tools they need most for real-time display, reporting and analysis.
Flexible Real-Time
Streaming Options

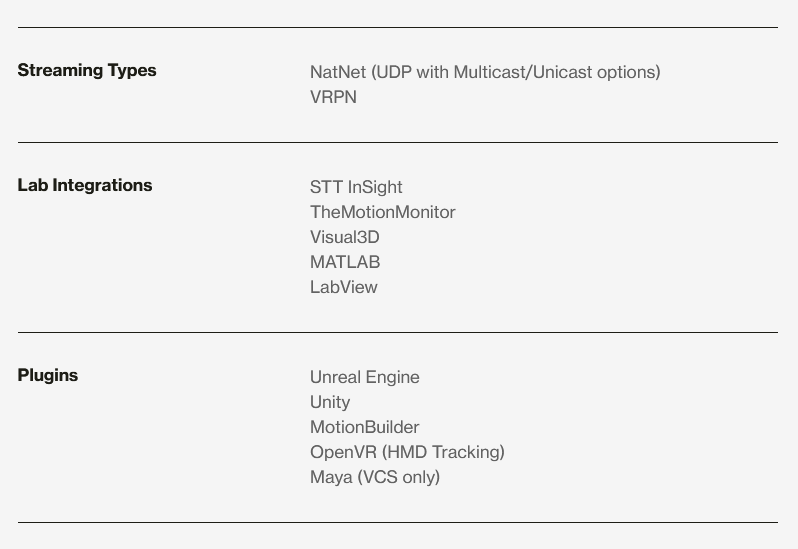

Motive gives users the choice between turn-key pipelines, or customized outputs for unique requirements. Stream patient data into Visual3D, InSight and MotionMonitor, stream performance mocap into Unreal, Unity3D, MotionBuilder, or write your own interface with our free NatNet SDK and camera SDK.
Validated Markersets

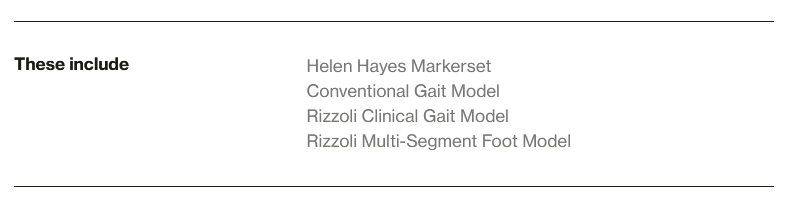

Motive:Body offers a library of predefined markersets, including many which are scientifically and clinically validated and used in dozens of peer-reviewed scientific publications. 3D representations are available for each markerset, enabling fast and accurate marker placement on specific anatomical landmarks for each patient or subject.
User Customization

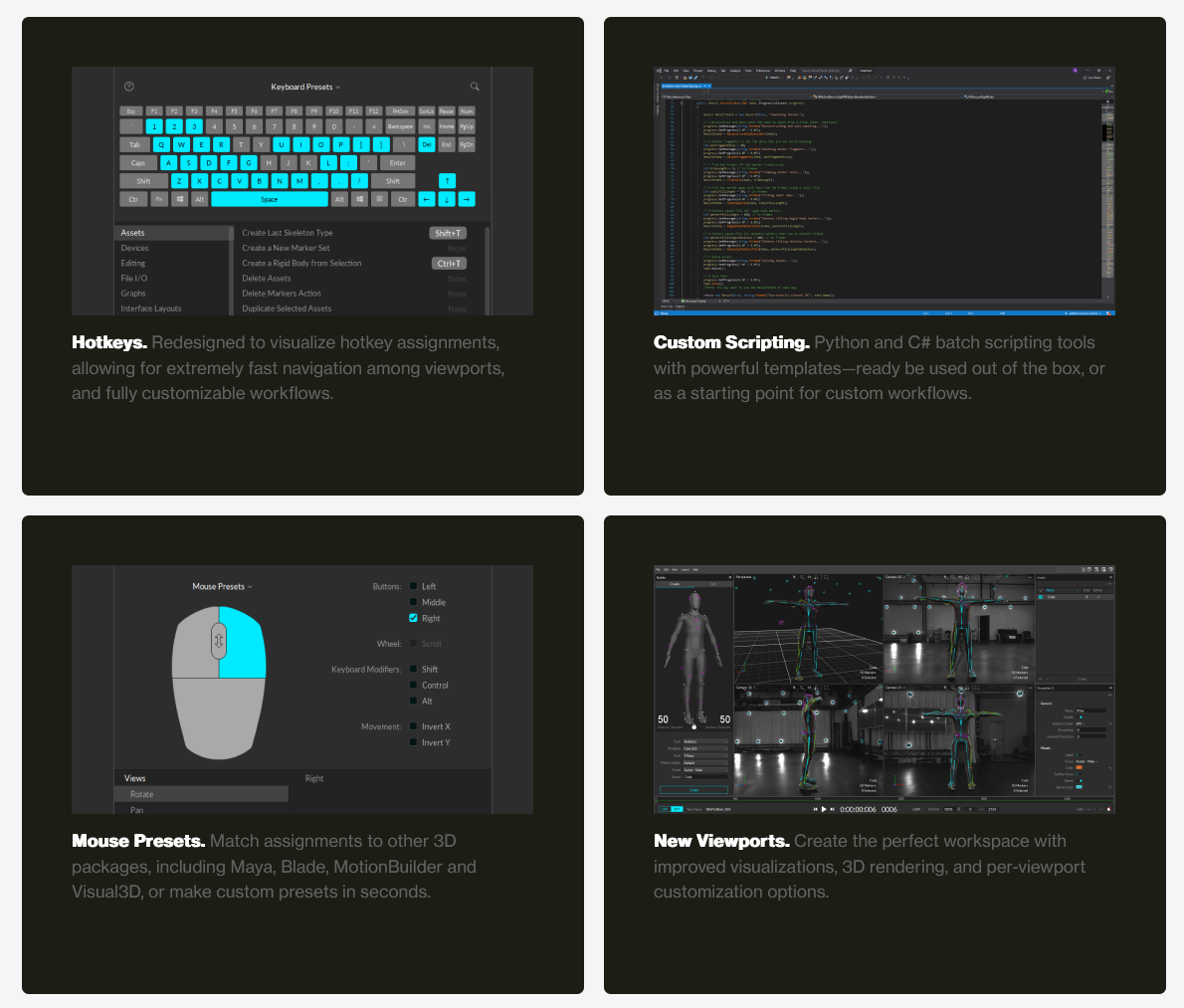

Motive’s workflow makes it easy to create and customize hundreds of new trackables, initialize a dozen performers, return to yesterday’s work, or to start trials for a new patient.
External sync in/out, Genlock, and Time Code. Synchronize Prime and Primex cameras to any signal or source with the eSync 2 with all the functionality and flexibility you’d expect with a professional tracking system. Cameras sync to dozens of sources including a professional cameras’ Genlock signal, where record and other event triggering can be managed from general purpose inputs and software commands.
Use the sync output signal as a master or to trigger force plates, EMGs and National Instrument DAQs for flexible yet precise hardware synchronization. Highly accurate frame timing can also be achieved with SMTPE Time Code for ease in editing and logging. OptiTrack’s free and open SDK allows for further customization within the timing protocols.
All Primex cameras can be used as a reference video source - with synchronized, calibrated 3D overlay. Deliver and/or record full resolution, full frame rate video with 3D overlay of markers, rigid bodies, skeletons, etc. Simply software select the camera(s) which are best for reference capture.
