8 x PrimeX 13 Motive:Tracker Set Robotics

23.341,26 €*

Produktnummer: PX13-MT-8Set-Robo

PDF Angebot erstellen

PDF Angebot für diesen Artikel erstellen Tip: Legen Sie mehrere Artikel in den Warenkorb und fordern Sie dort das Angebot an. Eingeloggte Benutzer erhalten ein individualisiertes Angebot.

Produktinformationen "8 x PrimeX 13 Motive:Tracker Set Robotics"

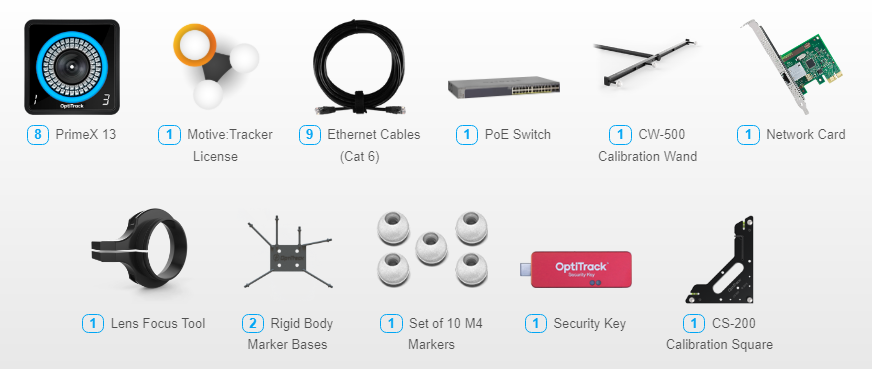

Dieses Set beinhaltet alle aufgelisteten Komponenten:

8 PrimeX 13
1 Motive:Tracker License
1 PoE Switch
9 Ethernet Cables (Cat 6)
1 Lens Focus Tool
1 Network Card
2 Rigid Body Marker
1 Set of 10 M4 Markers
1 CW-500 Calibration Wand
1 Cs-200 Calibration Square
1 Security Key

0 von 0 Bewertungen

Bewerten Sie dieses Produkt!

Teilen Sie Ihre Erfahrungen mit anderen Kunden.

Anmelden

Ihre E-Mail-Adresse

Ihr Passwort

Bewertungen nur in der aktuellen Sprache anzeigen.

Keine Bewertungen gefunden. Teilen Sie Ihre Erfahrungen mit anderen.

Components

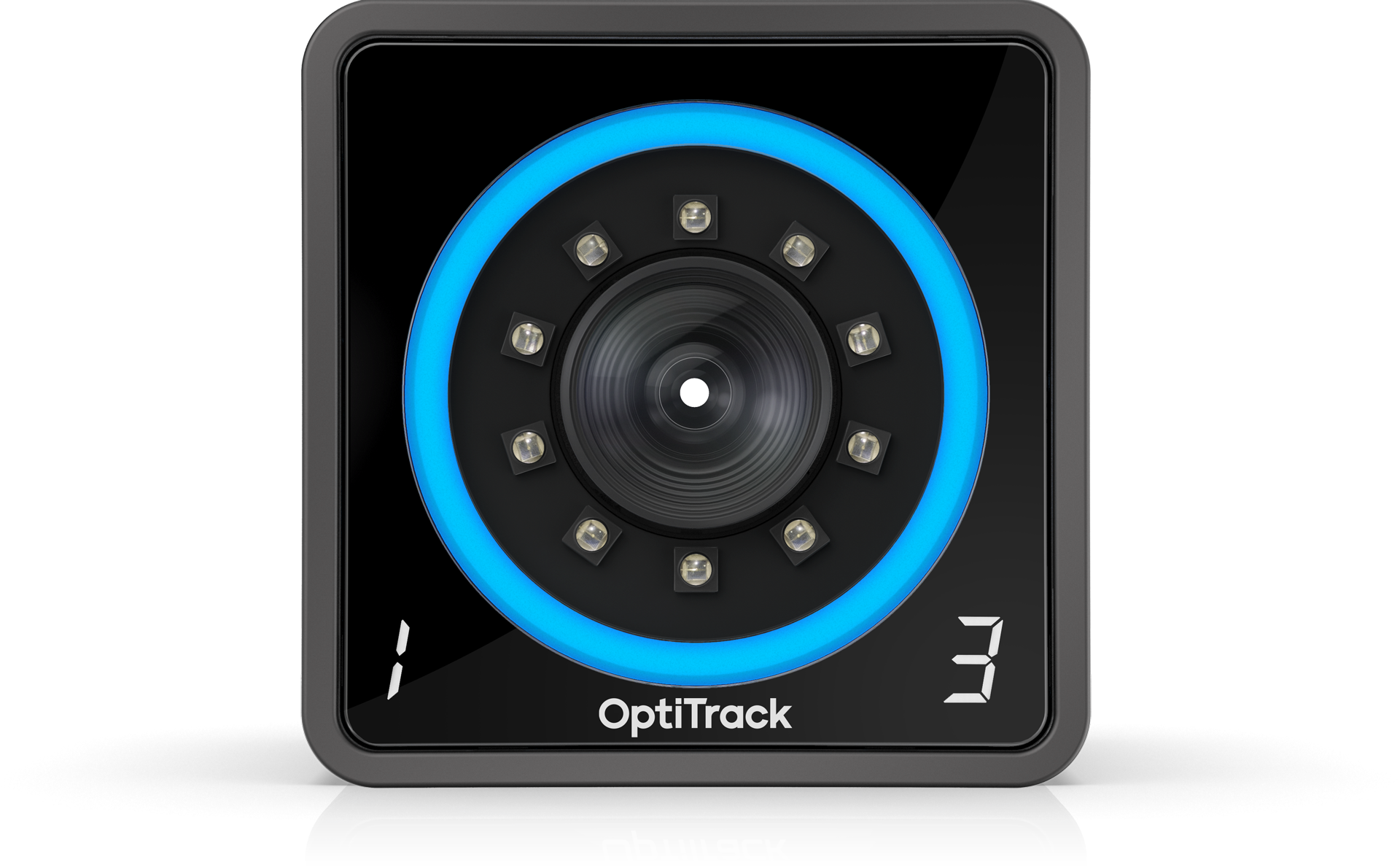

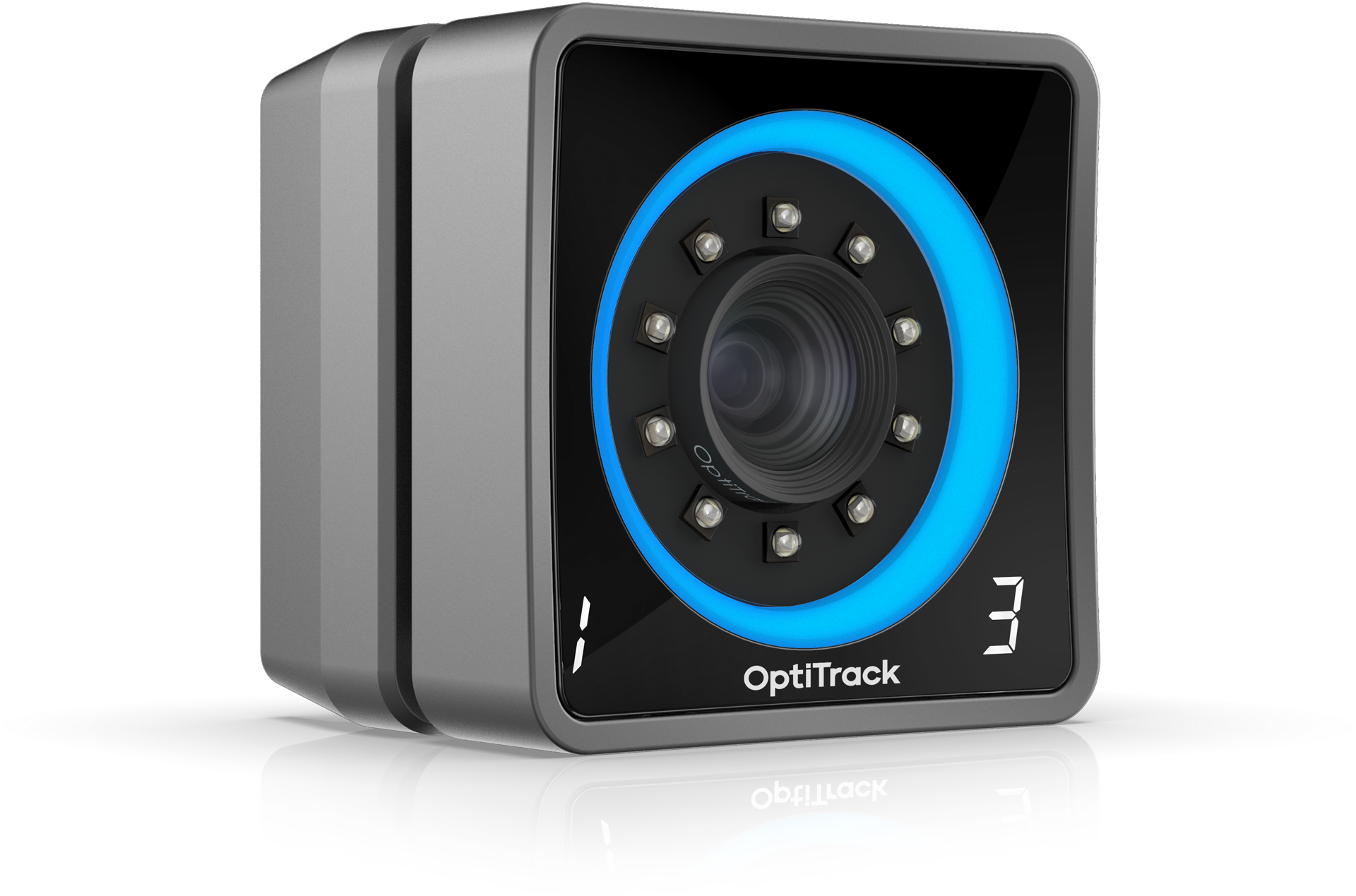

PrimeX 13

Filter: Filter Switcher: 850nm Band-Pass (IR) / 700nm (Visible) | Lens: 56° x 46° FOV (5.5mm)

1.3 MP resolution | +/- 0.20 mm 3D accuracy1 | 240 FPS native frame rate | 1000 FPS max frame rate2 The Primex 13 offers high-speed, precise tracking for medium-sized areas, with a compact design and exceptional 3D accuracy. Featuring a 240 FPS frame rate, sub-0.20 mm positional accuracy, and 0.5° rotational error, it supports both active and passive markers. Its custom "fast glass" M12 lenses, filter options, and advanced synchronization capabilities make it ideal for professional applications. Easy setup tools, powerful on-board processing, and an open SDK enhance usability and integration, making it the next generation of the most widely used motion tracking camera in history. 1. 3D accuracy referenced is for Primex 13 and typical for a 30'×30' (9m×9m) tracking area. Range is estimated using a 14 mm marker with cameras at an exposure of 800, gain of 6, and the lowest f-stop. 2. Frame rate Resolution FOV (5.5mm lens)240 fps1280×102456°×45°360 fps1040×83249°×40°500 fps880×70442°×34°1000 fps624×49630°×24°

2.518,56 €*

Ethernet Cable - Cat 6a

Kabellänge: 50 feet (15.2 m)

Category 6 Ethernet cables of various lengths for use with Ethernet camera systems. Shielded CAT5E, CAT6 or CAT6A Ethernet cables are recommended for harsh EMI environments and system CE compliance. Shielded cables can be purchased at numerous online retailers, or as special order items through OptiTrack. Compatible Cameras: PRIME SERIES S250E 3 feet (0.9 m) 14 feet (4.3 m) 30 feet (9.1 m) 50 feet (15.2 m) 100 feet (30.5 m)

Varianten ab 10,08 €*

30,23 €*

CW-500 Calibration Wand Kit

Calibration Wands This versatile OptiTrack Calibration Wand milled from high-grade aluminium is ideal for large and medium volumes with multiple configurable marker sets to adapt to your needs. The CW-500 Calibration Wand Kit includes: Wand Handle: ¼-20 mount Handle extension thread Three M4 15.9 mm (5/8") markers with compatible posts for 500 mm position Three M4 12.7 mm (1/2") markers with compatible posts for 250 mm position Adjustable: vertical or horizontal wanding position Storage Box - foam liner

351,73 €*

CS-200 Calibration Square

Calibration Squares - Micron Series The CS-200 Calibration Square was designed for flexibility and accuracy during system calibration.

170,32 €*

Rigid Body Marker Base

Black fiber filled nylon plastic rigid body has six M4 threaded posts.

6,05 €*

Marker: 12.7mm (1/2), M4 thread - 10 pack

Precision Spheres with 3M 7610 Reflective Tape and M4 Threads. 10 pack.

56,44 €*

Tp-Link 10Gb Network Adapter TX401

An add-on network card for use in configurations that use a uplink switch.

211,64 €*

Prime 13 Focus Tool

Prime 13 Focus Tool Part number: ACC0033 For focusing the lens on Prime 13 cameras.

25,20 €*

D-LINK DGS-1250-28XMP-6KV

28-port Gigabit PoE/PoE+ switch for use with Ethernet cameras. Supports up to: 23 PoE cameras (Primex 13, Primex 13W, Slimx 13) or 12 PoE+ cameras (Primex 41, Primex 22) per switch.

936,27 €*

Motive:Tracker 3.x Neulizenz

Rigid body tracking for drones, robots, HMDs for VR, AR devices, live action cameras, virtual cameras and more. perpetual license with one year of updates Requires a Security Key

1.006,82 €*

Security Key

The Security Key is a mobile platform for your Motive 3 software license, allowing the same license to be used on different computers. For example, if you have your Motive setup on one computer, but use Motive for editing motion capture data on another computer, you can simply move the Security Key to the workstation you are using at the time. Software licenses must be locked to a USB Security Key for most system types. If you are purchasing a security key for an existing system, read our Licensing FAQs or contact support before proceeding.

150,17 €*
