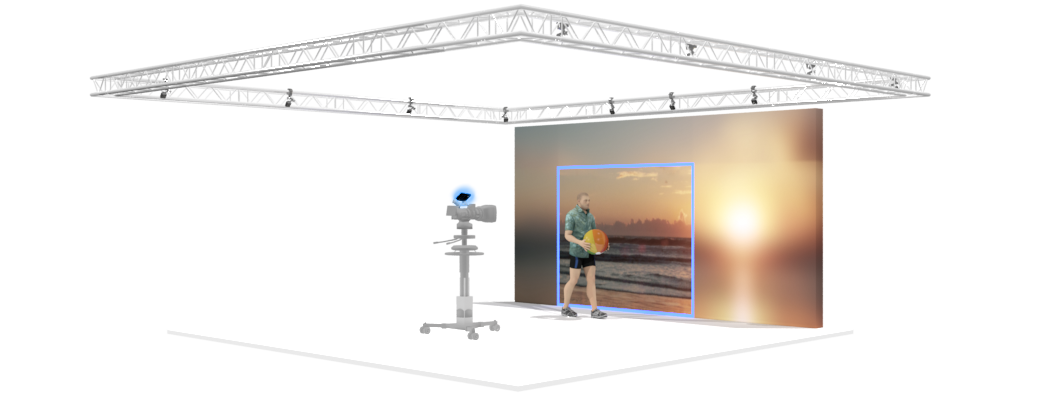

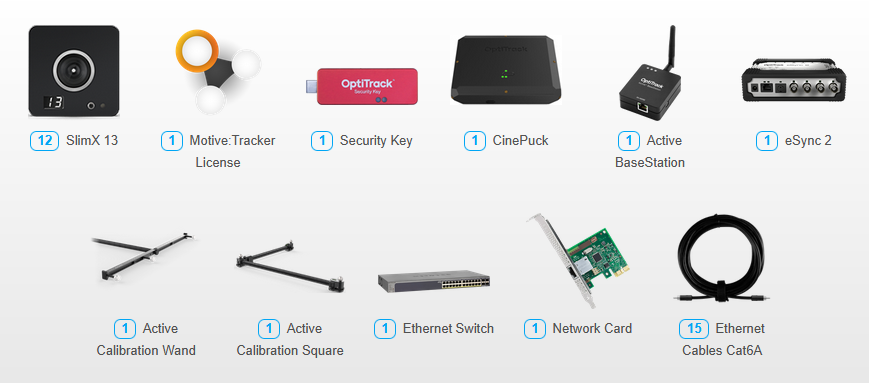

12x SlimX 13 Motive:Tracker Set VP

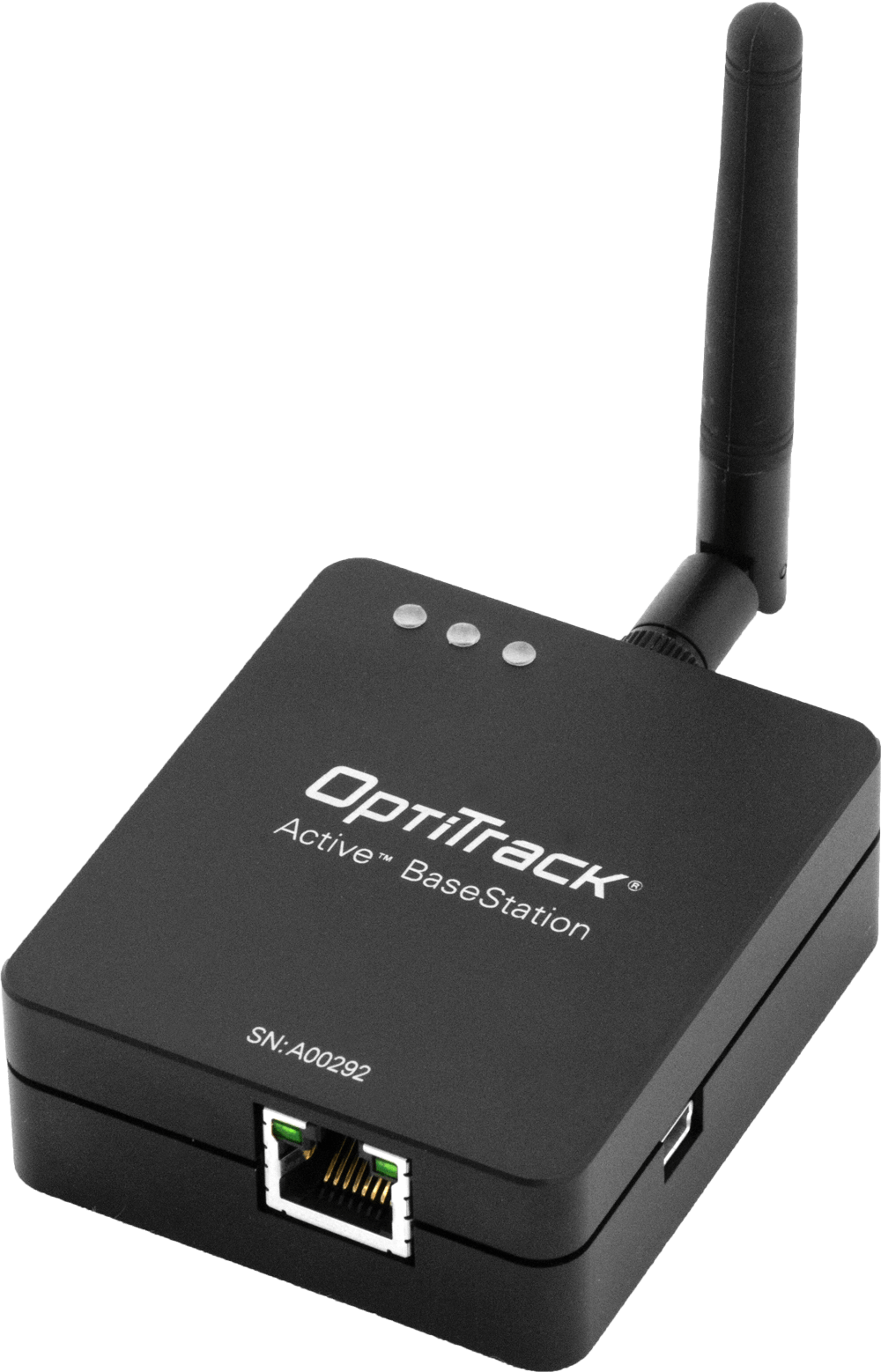

Synchronizes OptiTrack cameras with Active Tags. One required per tracking system.Approximately 100’ range from Base station to Tags.

Enhance your integration of motion tracking data into production and measurement ecosystems. Features include external sync in/out, Genlock, SMPTE Time Code, PoE, and more. Each eSync 2 comes with removable mounting tabs and an optional universal power supply (US/EU-compatible). In the Box 1 eSync 2 1 12V universal power supply (US/EU-compatible) 2 Mounting tabs (removable) 3 BNC male to RCA female adapters 4 Rubber feet 4 Velcro straps 1 eSync 2 quick start guide Synchronize Ethernet cameras to almost any signal or source with the eSync 2. Cameras can be in sync to sources such as a professional video Genlock signal, and can also be triggered to record from general purpose inputs and software commands. Use the sync output signal or trigger with a DAQ for biomechanical force plate data alignment. Highly accurate frame timing can also be achieved with SMTPE Time Code for ease in editing and logging. One eSync 2 per motion capture system is all that is needed, and all cameras align within a very precise ~+/-5µs of the input signal. The PoE Ethernet connection allows an eSync 2 to be located almost anywhere in a lab or studio, making it easy to connect with/to source signals. With convenient output signals that can mirror most inputs, you can place the eSync 2 in the middle of an existing setup, or convert signal types for greater system flexibility. Automatically measures and reports the frequency of signals connected to its inputs. This enables fast and easy confirmation inputs have the frequency expected. Genlock sync in Genlock your OptiTrack Ethernet cameras to an external video source via SD Black Burst or HD Tri-Level analog input. All modern SD and HD sync inputs are accepted for easy integration in professional studio environments. Genlock is ideal for syncing mocap data to live action media, including on-set capture, camera tracking, reference video, and head-mounted face mocap cameras.   Compatible with common Data Aquisition I/O devices   General purpose sync in Isolated - Used when the sync source is above normal logic 3.3V, or has a different ground reference. Recommended as the default input for general purpose syncing. High Impedance - Three high-impedance digital inputs are available for sending sync signals from an external device to the eSync 2. General purpose sync out Four digital outputs are available for sending sync signals from the eSync 2 to external devices. SMPTE Time Code Stamp recorded and streamed motion tracking data with SMPTE Time Code for compositing with other media in post. Time Code support in Motive:Body includes FBX, C3D, and NatNet. Motive:Tracker support includes CSV, NatNet, and VRPN. Plug-n-play Shutter glasses support Generic 3D shutter glasses support is provided by offsetting the camera's IR Strobe. Connect video cards that support a stereo output signal to the Sync In, and a shutter glasses signal generator to the Sync Out. Use the adjustable software offset to avoid interference between the mocap camera strobes and the shutter glasses. VESA input and output connectors are provided for graphics cards and IR emitters that do not have BNC connections.

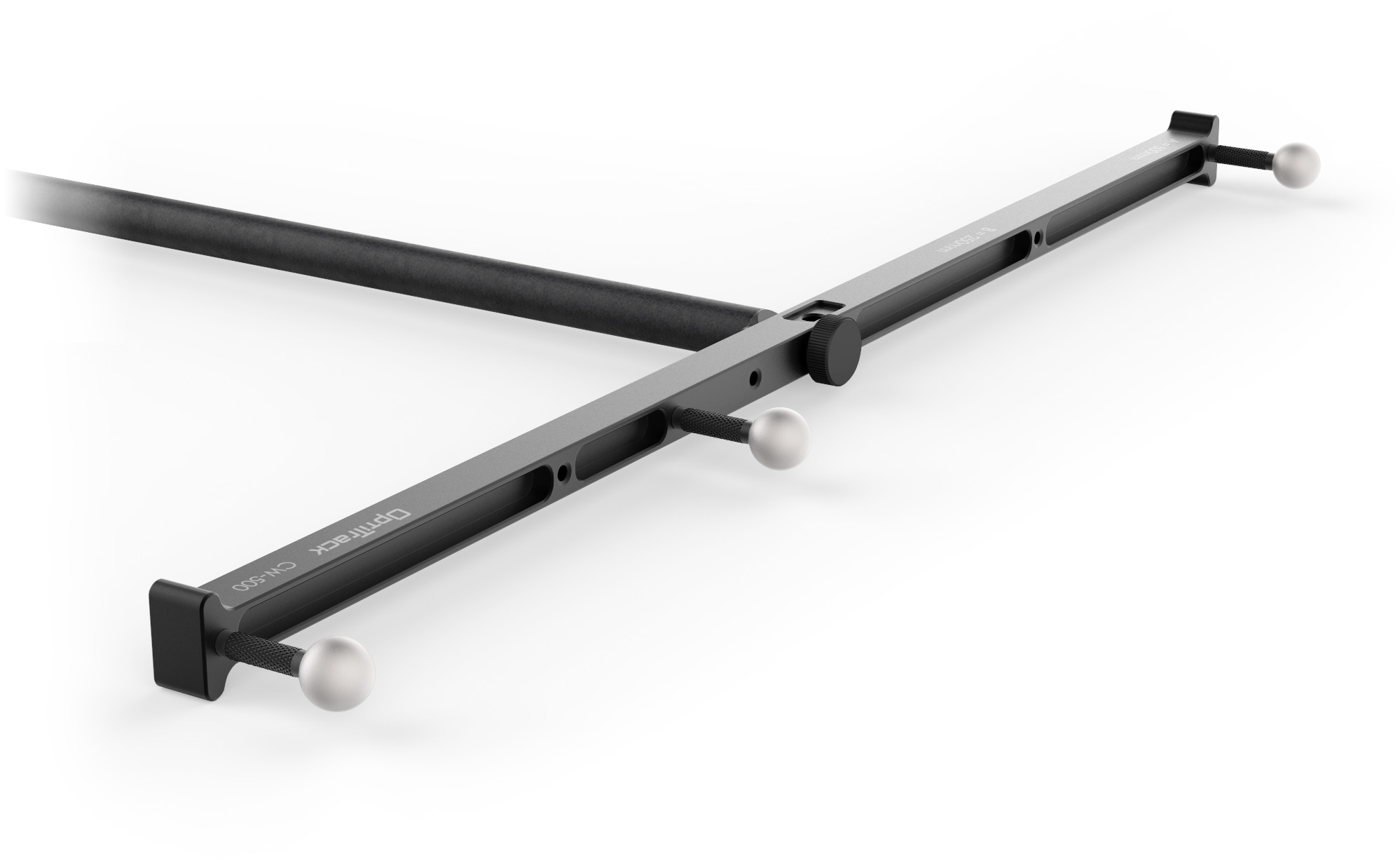

Calibration Wands  This versatile OptiTrack Calibration Wand milled from high-grade aluminium is ideal for large and medium volumes with multiple configurable marker sets to adapt to your needs. The CW-500 Calibration Wand Kit includes:   Wand Handle: ¼-20 mount Handle extension thread Three M4 15.9 mm (5/8") markers with compatible posts for 500 mm position Three M4 12.7 mm (1/2") markers with compatible posts for 250 mm position Adjustable: vertical or horizontal wanding position Storage Box - foam liner

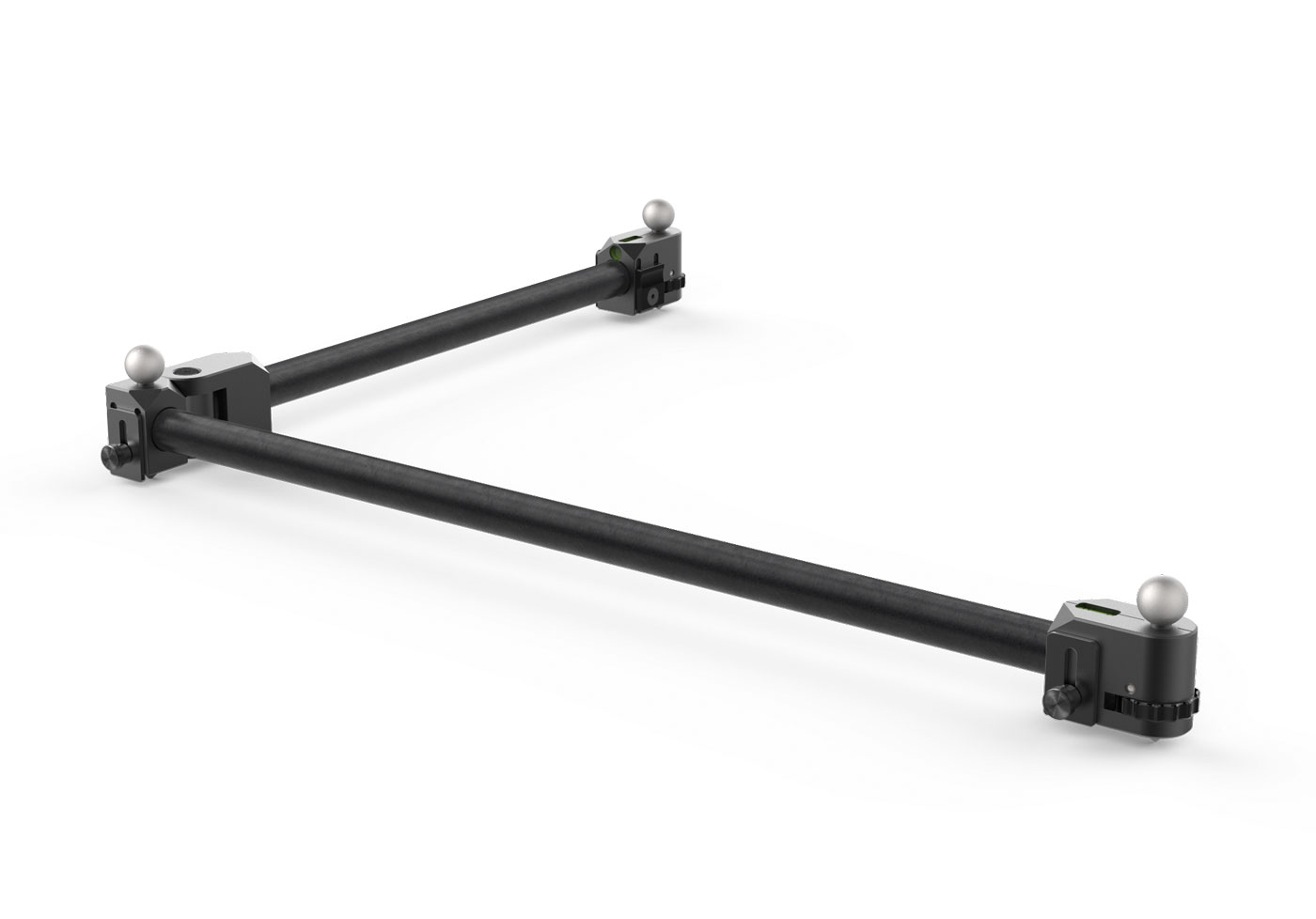

Calibration Squares  The CS-400 Calibration Square was designed for flexibility and accuracy during system calibration. Adjustable leveling feet with individual vials enable level placement, even on uneven surfaces, while expandable tabs enable precise alignment of the calibration square with force plates. The CS-400 is also lightweight and compact, including fiberglass rods and a foldable frame, for easy storage and transportation.   Dimensions: 300 mm x 400 mm

28-port Gigabit PoE/PoE+ switch for use with Ethernet cameras. Supports up to: 23 PoE cameras (Primex 13, Primex 13W, Slimx 13) or 12 PoE+ cameras (Primex 41, Primex 22) per switch.

An add-on network card for use in configurations that use a uplink switch.

Category 6 Ethernet cables of various lengths for use with Ethernet camera systems. Shielded CAT5E, CAT6 or CAT6A Ethernet cables are recommended for harsh EMI environments and system CE compliance. Shielded cables can be purchased at numerous online retailers, or as special order items through OptiTrack. Compatible Cameras:  PRIME SERIES S250E 3 feet (0.9 m) 14 feet (4.3 m) 30 feet (9.1 m) 50 feet (15.2 m) 100 feet (30.5 m)

Rigid body tracking for drones, robots, HMDs for VR, AR devices, live action cameras, virtual cameras and more. perpetual license with one year of updates Requires a Security Key

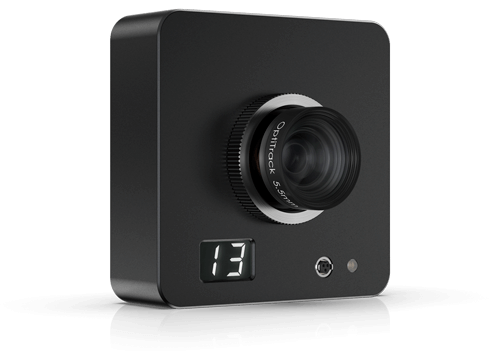

1.3 MP resolution | +/- 0.30 mm 3D accuracy1 | 240 FPS native frame rate | 1000 FPS max frame rate2 With a compact 2.7" design and lightweight 12-ounce build, the Slimx 13 excels in VR, AR, and high-speed tracking at up to 240 FPS. Custom M12 lenses and 850nm IR illumination ensure precise 3D data, while mix-and-match compatibility with Prime cameras enables versatile configurations. Features like software-selectable filters, on-camera status indicators, and seamless OEM integration make it ideal for both professional setups and computer vision applications. 1. 3D accuracy referenced is typical for a 30'×30' (9m×9m) tracking area. Range is estimated using a 14 mm marker with cameras at an exposure of 800, gain of 6, and the lowest f-stop. 2. Frame rate      Resolution         FOV (3.5mm lens) 240 fps   1280×1024 82°×70° 360 fps 1040×832 71°×59° 500 fps 880×704 62°×52° 1000 fps 624×496 46°×38°

OptiTrack’s first purpose-built tracking tool for Virtual Production and Broadcast studios, offering them access to our world leading tracking accuracy and precision. Includes an all-new industrial grade inertial measurement unit (IMU), and ultra bright wide-angle LEDs. The new IMU is sensor fused with the optical data to produce a tracking result better than the sum of its parts; resulting in smooth tracking—even with significant occlusion. You can even occlude all but one marker and still achieve full 6DoF tracking. The CinePuck includes a variety of mounts on the bottom including an ARRI Anti-Twist Mount to allow you to mount the device on any camera, even with crowded rigging configurations. It also includes an embedded antenna for improved wireless range, a battery that lasts over 14 hours, and is all contained in a durable enclosure. The CinePuck from OptiTrack, bringing your camera tracking to the next level.
