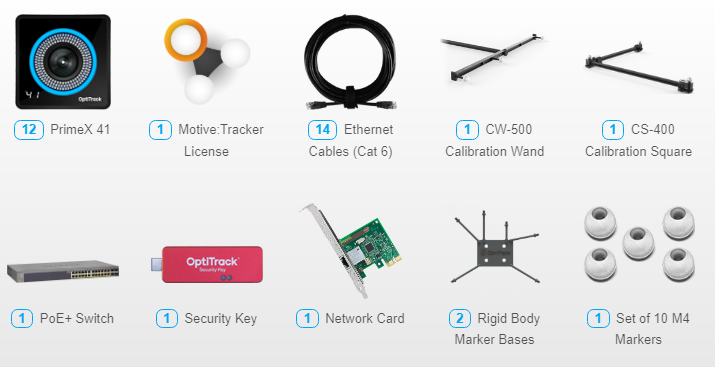

12 x PrimeX 41 Motive:Tracker Set Robotics

 4.1 MP resolution | +/- 0.10 mm 3D accuracy1 | 180 FPS native frame rate | 250+ FPS max frame rate2 The Primex 41 is the pinnacle of large-scale 3D measurement systems, offering over 100 feet of passive marker range and 150 feet with Signature Pulse Active3 technology. Its precision, with positional errors less than 0.10 mm and rotational errors under 0.5°, is unmatched, making it ideal for large-scale tracking and high-speed motion capture.This camera features intuitive design, custom-engineered “fast glass” lenses, and optional wide-view configurations to maximize field of view and accuracy. Integrated image processing, outdoor capture capability, and synchronized reference video recording provide a seamless user experience, while flexible synchronization options ensure compatibility with professional setups. A robust SDK supports OEM applications, enabling customized integrations for diverse industries.1. 3D accuracy referenced is typical for a 30'×30' (9m×9m) tracking area. Range is estimated using a 14 mm marker with cameras at an exposure of 800, gain of 6, and the lowest f-stop. 2. Frame rate      Resolution      FOV (standard 12.5mm lens) 180 fps 2048×2048 51°×51° 240 fps 2048×1440 51°×37° 500 fps 2048×720 51°×18° 1000 fps 2048×352 51°×9° 3. Signature Pulse Active markers provide their own unique ID, resulting in 100% error free labels. When introduced into the tracking area, the LED markers are acquired in < 0.1 seconds. Unique marker placements based on spatial separation, normally required for passive marker tracking, are not required for distinguishing multiple rigid bodies.

Category 6 Ethernet cables of various lengths for use with Ethernet camera systems. Shielded CAT5E, CAT6 or CAT6A Ethernet cables are recommended for harsh EMI environments and system CE compliance. Shielded cables can be purchased at numerous online retailers, or as special order items through OptiTrack. Compatible Cameras:  PRIME SERIES S250E 3 feet (0.9 m) 14 feet (4.3 m) 30 feet (9.1 m) 50 feet (15.2 m) 100 feet (30.5 m)

Calibration Wands  This versatile OptiTrack Calibration Wand milled from high-grade aluminium is ideal for large and medium volumes with multiple configurable marker sets to adapt to your needs. The CW-500 Calibration Wand Kit includes:   Wand Handle: ¼-20 mount Handle extension thread Three M4 15.9 mm (5/8") markers with compatible posts for 500 mm position Three M4 12.7 mm (1/2") markers with compatible posts for 250 mm position Adjustable: vertical or horizontal wanding position Storage Box - foam liner

Calibration Squares  The CS-400 Calibration Square was designed for flexibility and accuracy during system calibration. Adjustable leveling feet with individual vials enable level placement, even on uneven surfaces, while expandable tabs enable precise alignment of the calibration square with force plates. The CS-400 is also lightweight and compact, including fiberglass rods and a foldable frame, for easy storage and transportation.   Dimensions: 300 mm x 400 mm

28-port Gigabit PoE/PoE+ switch for use with Ethernet cameras. Supports up to: 23 PoE cameras (Primex 13, Primex 13W, Slimx 13) or 12 PoE+ cameras (Primex 41, Primex 22) per switch.

An add-on network card for use in configurations that use a uplink switch.

Black fiber filled nylon plastic rigid body has six M4 threaded posts.

Precision Spheres with 3M 7610 Reflective Tape and M4 Threads. 10 pack.

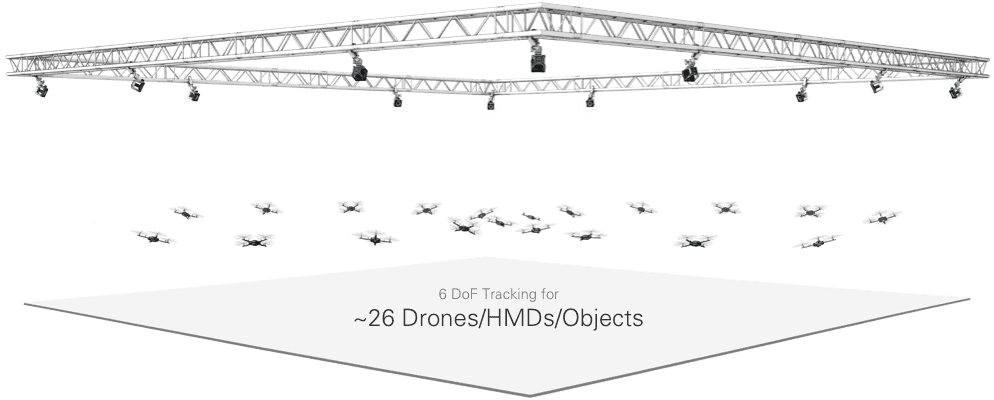

Rigid body tracking for drones, robots, HMDs for VR, AR devices, live action cameras, virtual cameras and more. perpetual license with one year of updates Requires a Security Key

The Security Key is a mobile platform for your Motive 3 software license, allowing the same license to be used on different computers. For example, if you have your Motive setup on one computer, but use Motive for editing motion capture data on another computer, you can simply move the Security Key to the workstation you are using at the time. Software licenses must be locked to a USB Security Key for most system types. If you are purchasing a security key for an existing system, read our Licensing FAQs or contact support before proceeding.
