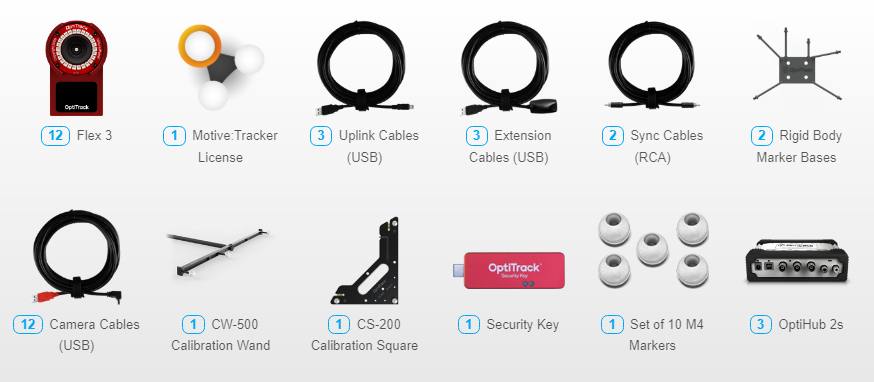

12 x Flex 3 Motive:Tracker Set Robotics

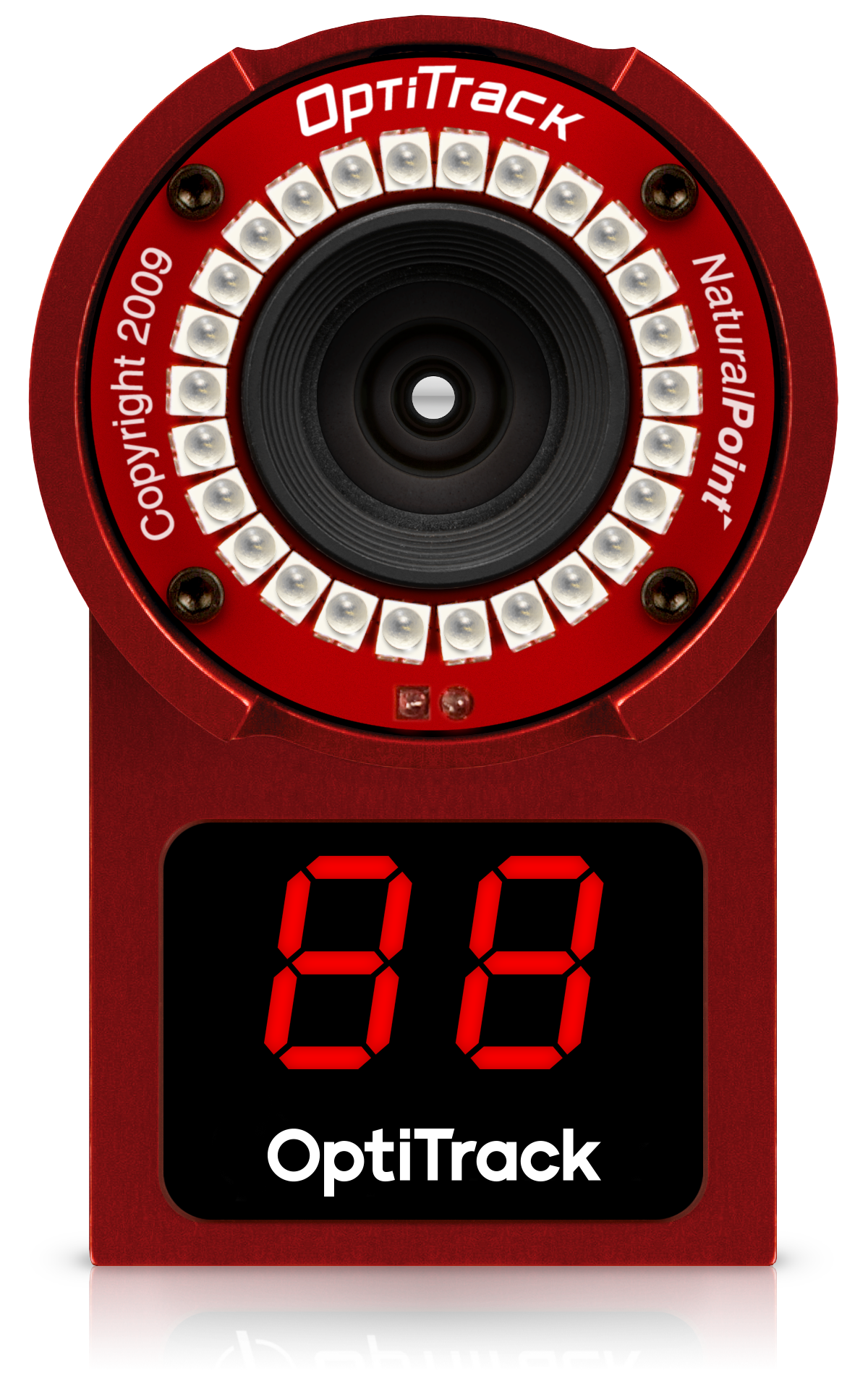

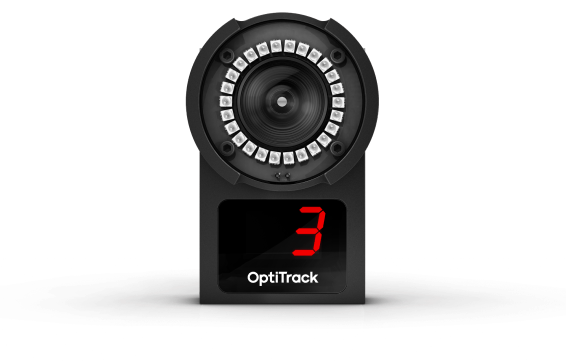

0.3 MP resolution | 10 ms latency | +/- 0.50 mm 3D accuracy1 | 100 FPS native frame rate The OptiTrack Flex 3 is a compact, high-performance motion capture camera offering 0.3 MP resolution, 10 ms latency, +/- 0.50 mm 3D Accuracy and 100 FPS capture speed. Its interchangeable M12 lenses and infrared light provide flexible, precise tracking in any environment. Start small and expand as needed with modular camera bundles, all with continuous, automatic calibration. 3D accuracy referenced is typical for a 30'×30' (9m×9m) tracking area. Range is estimated using a 14 mm marker with cameras at an exposure of 800, gain of 6, and the lowest f-stop. 1.

Standard-A plug to Standard-B plugFor connecting hubs to a computer. 16 feet (4.9 m) Compatible Cameras:Flex 13 / Flex 3

Standard-A plug to Standard-A receptacle 16 feet (4.9 m) For extending the reach of USB hubs. This allows OptiTrack cameras to be located farther from the computer for larger capture volume sizes. Up to two cables can be used in series for longer distances. Note: Do not use between cameras and USB Hubs. Compatible Cameras:Flex 3 (V100:R2)

RCA plug to RCA plug   Used to synchronize OptiTrack's USB systems. For V100 and mixed systems, 1 cable is required per camera. For V100:R2 systems with OptiHubs, only the hubs need to be connected with a sync cable. Compatible Cameras:Flex 3 (V100:R2)

Black fiber filled nylon plastic rigid body has six M4 threaded posts.

Standard-A plug to Mini-B plug For connecting cameras to hubs. This down angled Mini-B plug routes the cable to the back of the camera to avoid interfering with objects on the port side of the device. This is the recommended cable for most mocap setups involving truss or tripods. Compatible Cameras:Flex 13 / Flex 3 (V100:R2)

Calibration Wands  This versatile OptiTrack Calibration Wand milled from high-grade aluminium is ideal for large and medium volumes with multiple configurable marker sets to adapt to your needs. The CW-500 Calibration Wand Kit includes:   Wand Handle: ¼-20 mount Handle extension thread Three M4 15.9 mm (5/8") markers with compatible posts for 500 mm position Three M4 12.7 mm (1/2") markers with compatible posts for 250 mm position Adjustable: vertical or horizontal wanding position Storage Box - foam liner

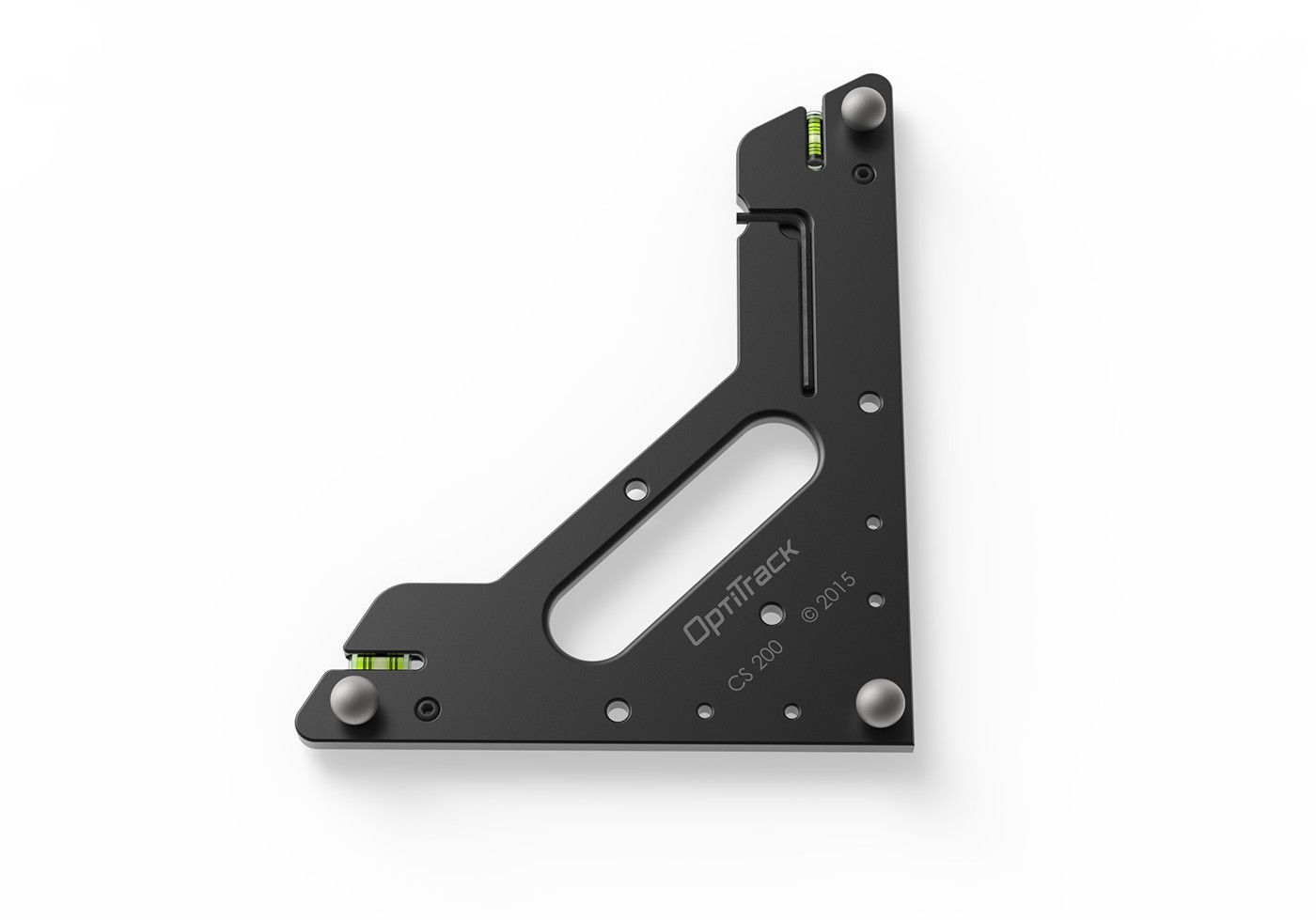

Calibration Squares - Micron Series  The CS-200 Calibration Square was designed for flexibility and accuracy during system calibration.

Precision Spheres with 3M 7610 Reflective Tape and M4 Threads. 10 pack.

Improve power regulation, camera syncing, tracking distance and interoperability. Features include external sync in/out, shutter glasses support, and more. Each 6-port OptiHub 2 comes with removable mounting tabs and a universal power supply (US/EU-compatible) In the Box 1 OptiHub 2 2 Mounting tabs (removable) 1 12V universal power supply(US/EU-compatible) 1 European power cable 4 Rubber feet 1 OptiHub quick start guide 10 Velcro straps     On-board voltage regulation On-board voltage regulation provides stable, consistent power distribution to cameras, unlike COTS hubs which varies the voltage based on the power load to the hub. Reliable power to every camera maximizes IR strobe brightness, resulting in more consistent tracking and fewer dropped markers. Shutter glasses support Both NuVision and RealD shutter glasses are now supported for integration into OptiTrack environments. External syncing allows the camera strobe and shutter glass sequencing to be staggered, reducing interference between the two. Learn more External sync in/out Integrate OptiTrack into large scale tracking and analytical ecosystems with external sync in and out. Utilize frame triggers or free-run triggering to synchronize frame cycling with external software controls and hardware components like force plates and shutter glasses. Hub-to-hub syncing OptiHubs in the same chain automatically propagate sync data to all connected cameras. OptiSync provides connection topology data for cameras and hubs in relation to each other, enabling automatic camera numbering based on port location. What is the difference between Wired Sync and OptiSync? Learn more Sync signal over USB With OptiSync, NaturalPoint's custom synchronization system, sync signals are sent and received over the USB cable. As a result, cabling is reduced by 50%, which enables simpler setup and cleaner rigs. High power mode High Power Mode is available for the Flex 13 and the Flex 3, which are specifically designed for use with the OptiHub. It allows cameras to draw additional power for the strobe, which increases effective capture range, allows for wider FOV lenses and smaller markers to be used. USB uplink with status LEDs Meaningful status LEDs enable monitoring of each port's activity, including whether the port is operating in high speed or full speed mode.   Documents & Videos Compatible Products OptiHub Quick Start Guide OptiHub User Guide OptiHub Technical Drawing

Rigid body tracking for drones, robots, HMDs for VR, AR devices, live action cameras, virtual cameras and more. perpetual license with one year of updates Requires a Security Key

The Security Key is a mobile platform for your Motive 3 software license, allowing the same license to be used on different computers. For example, if you have your Motive setup on one computer, but use Motive for editing motion capture data on another computer, you can simply move the Security Key to the workstation you are using at the time. Software licenses must be locked to a USB Security Key for most system types. If you are purchasing a security key for an existing system, read our Licensing FAQs or contact support before proceeding.
