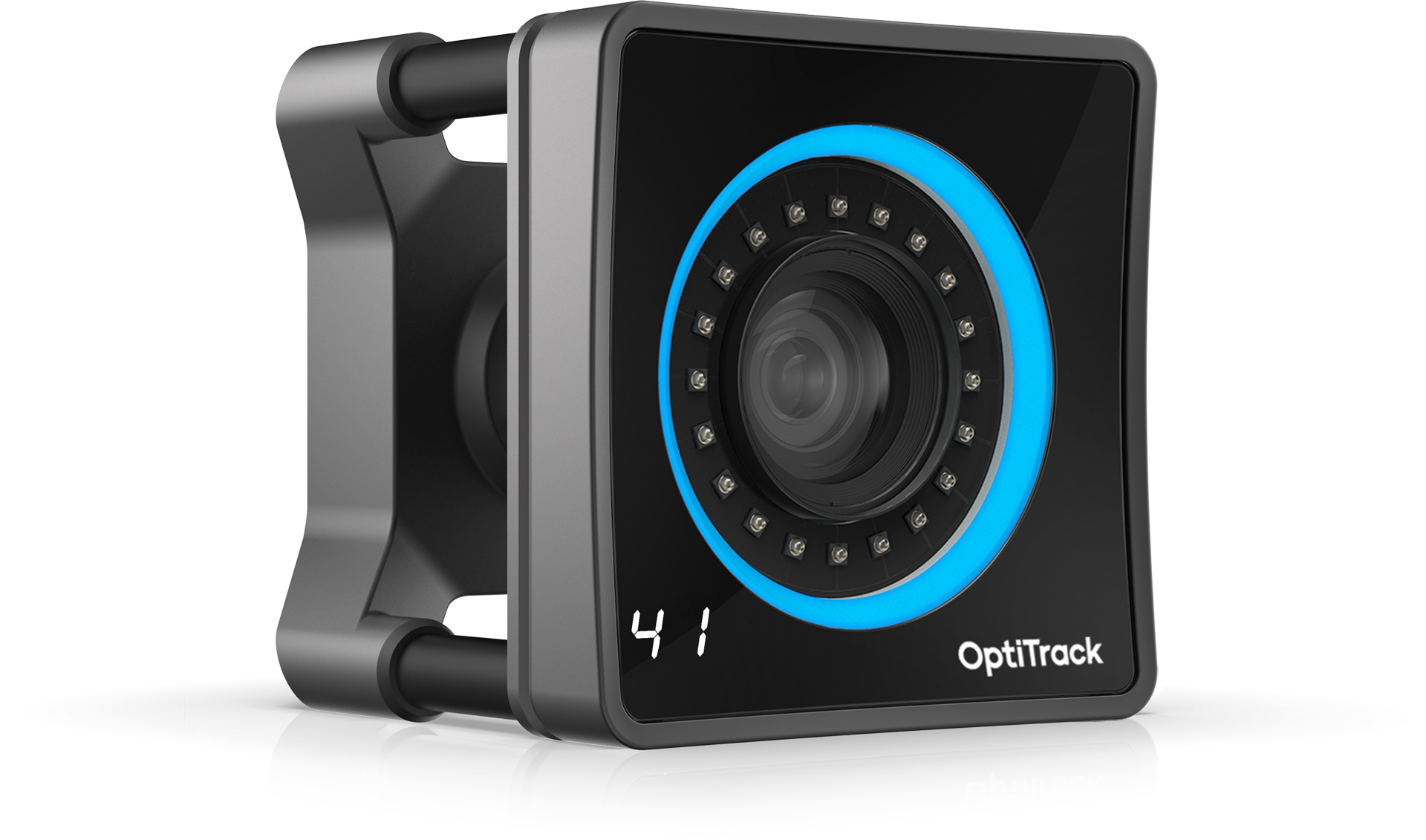

4.1 MP resolution | +/- 0.10 mm 3D accuracy1 | 180 FPS native frame rate | 250+ FPS max frame rate2 The Primex 41 is the pinnacle of large-scale 3D measurement systems, offering over 100 feet of passive marker range and 150 feet with Signature Pulse Active3 technology. Its precision, with positional errors less than 0.10 mm and rotational errors under 0.5°, is unmatched, making it ideal for large-scale tracking and high-speed motion capture.This camera features intuitive design, custom-engineered “fast glass” lenses, and optional wide-view configurations to maximize field of view and accuracy. Integrated image processing, outdoor capture capability, and synchronized reference video recording provide a seamless user experience, while flexible synchronization options ensure compatibility with professional setups. A robust SDK supports OEM applications, enabling customized integrations for diverse industries.1. 3D accuracy referenced is typical for a 30'×30' (9m×9m) tracking area. Range is estimated using a 14 mm marker with cameras at an exposure of 800, gain of 6, and the lowest f-stop. 2. Frame rate      Resolution      FOV (standard 12.5mm lens) 180 fps 2048×2048 51°×51° 240 fps 2048×1440 51°×37° 500 fps 2048×720 51°×18° 1000 fps 2048×352 51°×9° 3. Signature Pulse Active markers provide their own unique ID, resulting in 100% error free labels. When introduced into the tracking area, the LED markers are acquired in < 0.1 seconds. Unique marker placements based on spatial separation, normally required for passive marker tracking, are not required for distinguishing multiple rigid bodies.

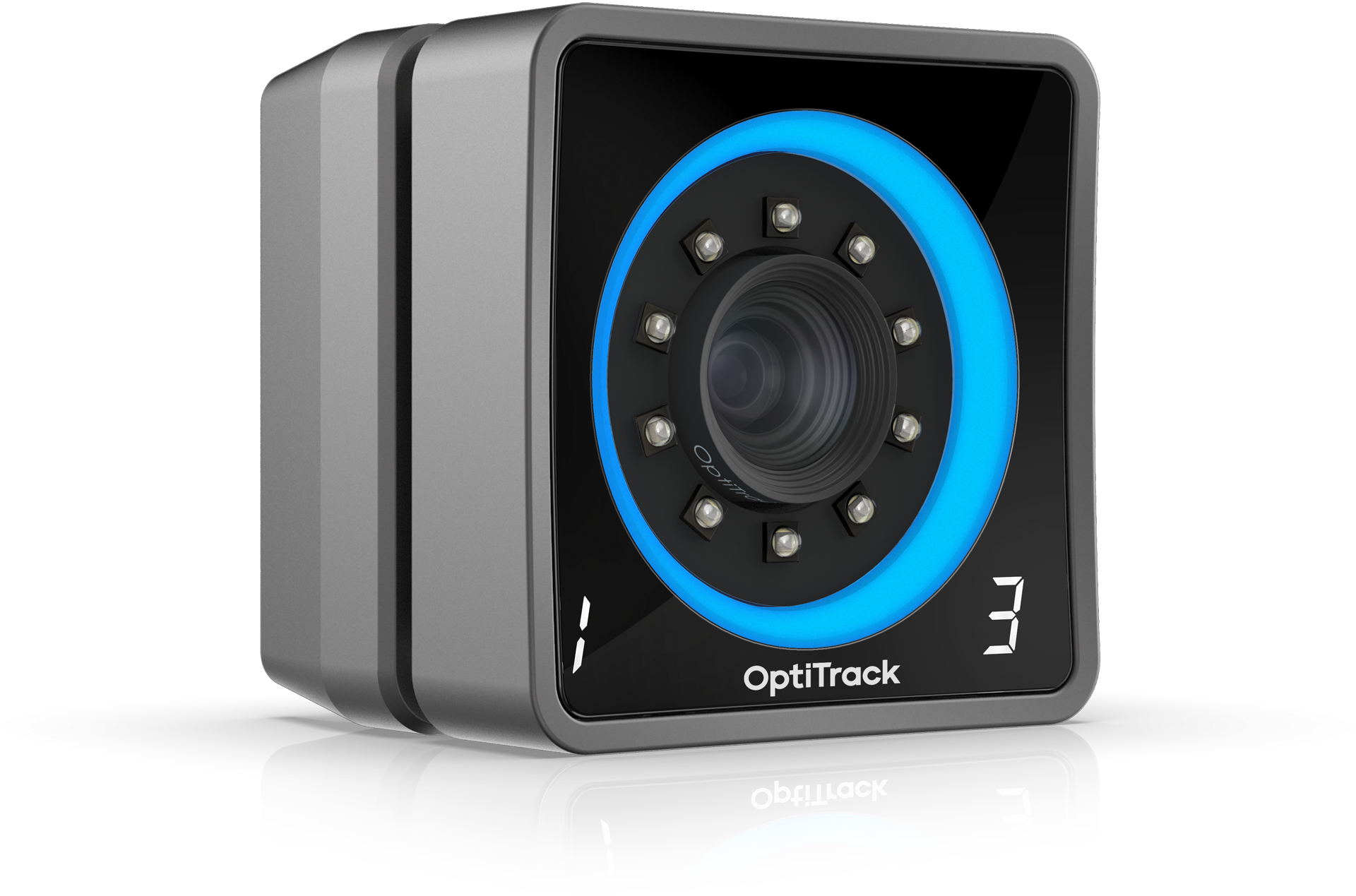

1.3 MP resolution | +/- 0.20 mm 3D accuracy1 | 240 FPS native frame rate | 1000 FPS max frame rate2  The Primex 13 offers high-speed, precise tracking for medium-sized areas, with a compact design and exceptional 3D accuracy. Featuring a 240 FPS frame rate, sub-0.20 mm positional accuracy, and 0.5° rotational error, it supports both active and passive markers. Its custom "fast glass" M12 lenses, filter options, and advanced synchronization capabilities make it ideal for professional applications. Easy setup tools, powerful on-board processing, and an open SDK enhance usability and integration, making it the next generation of the most widely used motion tracking camera in history. 1. 3D accuracy referenced is for Primex 13 and typical for a 30'×30' (9m×9m) tracking area. Range is estimated using a 14 mm marker with cameras at an exposure of 800, gain of 6, and the lowest f-stop. 2. Frame rate     Resolution      FOV (5.5mm lens)240 fps1280×102456°×45°360 fps1040×83249°×40°500 fps880×70442°×34°1000 fps624×49630°×24°

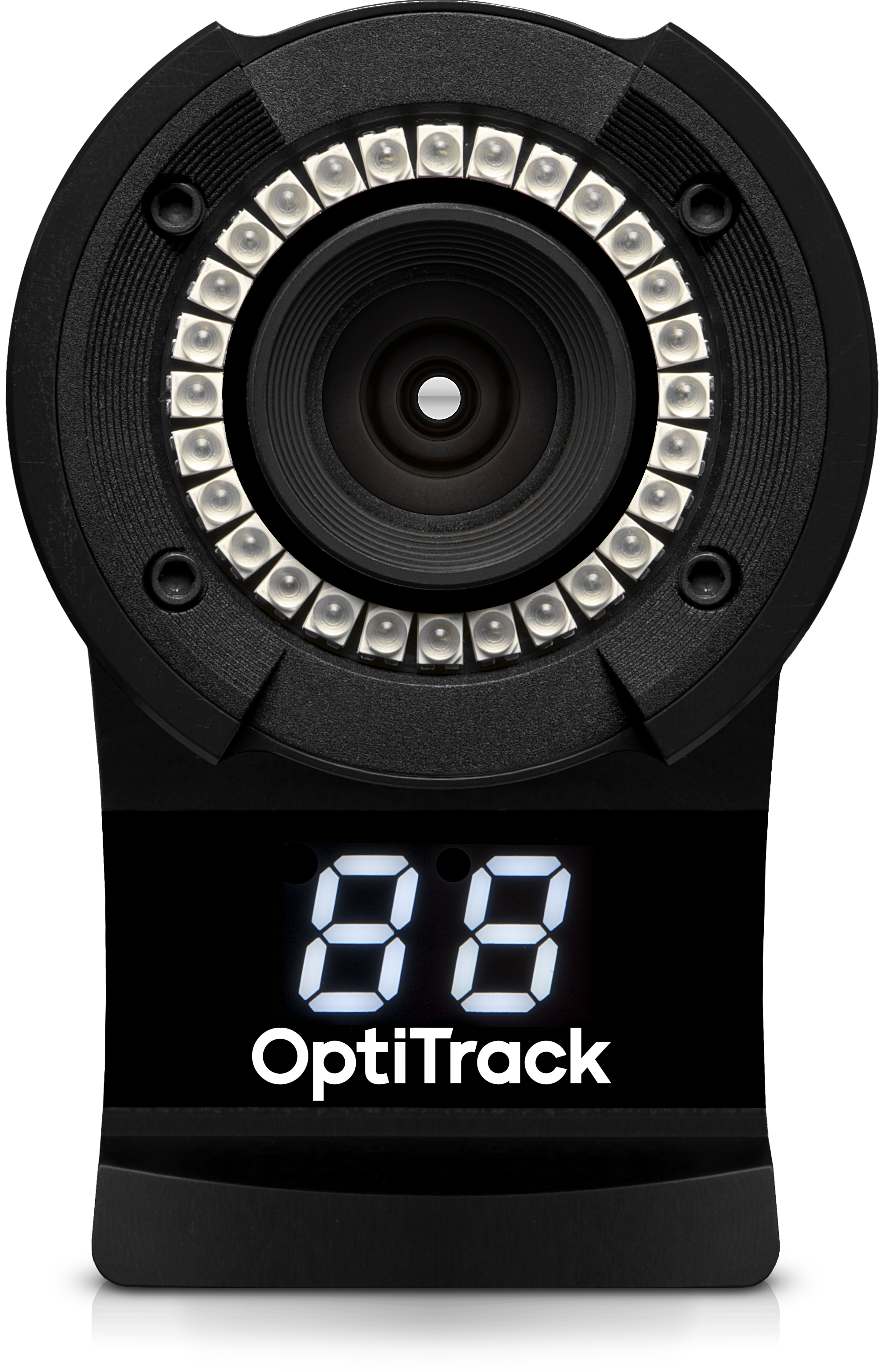

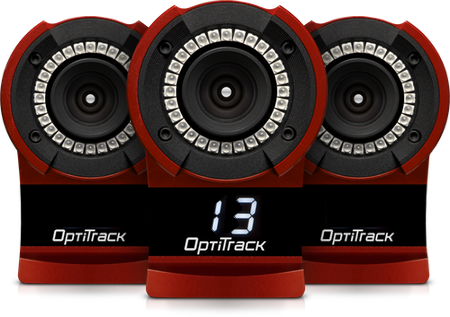

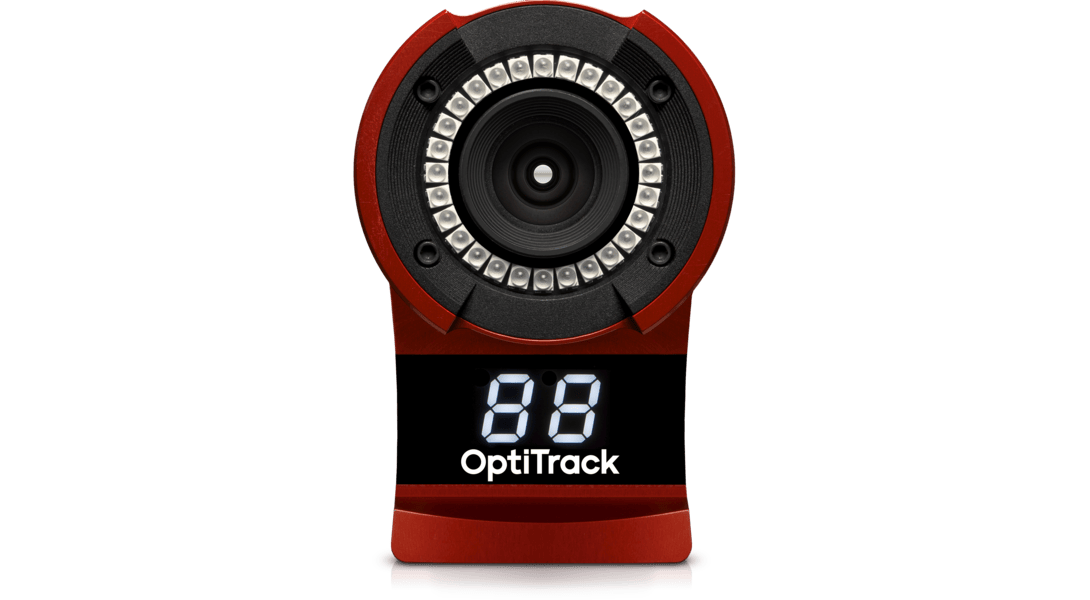

1.3 MP resolution | 8.3 ms latency | +/- 0.20 mm 3D accuracy1 | 120 FPS native frame rate The Flex 13 offers professional-grade motion capture with 1.3 MP resolution, 120 FPS, and a 56° field of view, ensuring sub-0.5 mm tracking precision. Its efficient on-camera processing supports scalable imaging, while features like interchangeable M12 lenses and infrared lighting optimize capture environments. Perfect for AAA and indie studios, it combines affordability with robust performance for applications ranging from multi-actor capture to computer vision integration. 1.3D accuracy referenced is typical for a 30'×30' (9m×9m) tracking area. Range is estimated using a 14 mm marker with cameras at an exposure of 800, gain of 6, and the lowest f-stop.

12 MP Auflösung | +/- 0,1 mm 3D-Genauigkeit1 | 300 FPS native Bildrate | 1000 FPS maximale Bildrate2Die Primex 120-Kamera bietet außergewöhnliche Präzision und verfolgt Marker in einer Entfernung von bis zu 300 Fuß mit einer Positionsabweichung von weniger als +/-0,10 mm. Ihr speziell entwickeltes 18-mm-„Fast Glass“-Objektiv bietet geringe Verzerrung, hohe Lichtdurchlässigkeit und ein breites Sichtfeld von 51° x 39°, das beim 120W-Modell auf 65° x 51° erweitert werden kann. Sie unterstützt passive und aktive Marker, synchronisiertes Graustufenvideo und flexible Systemkonfigurationen für hochpräzises 3D-Tracking in jeder Umgebung.1.3D accuracy referenced is typical for a 30'×30' (9m×9m) tracking area. Range is estimated using a 14 mm marker with cameras at an exposure of 800, gain of 6, and the lowest f-stop. 2.Frame rate       Resolution        FOV (standard 24mm lens)     FOV (wide 18mm lens)300 fps4096×307251°×39°65°×51°480 fps4096×190451°×25°65°×33°840 fps2048×107251°×14°65°×19°1000 fps2048×89651°×12°65°×16°

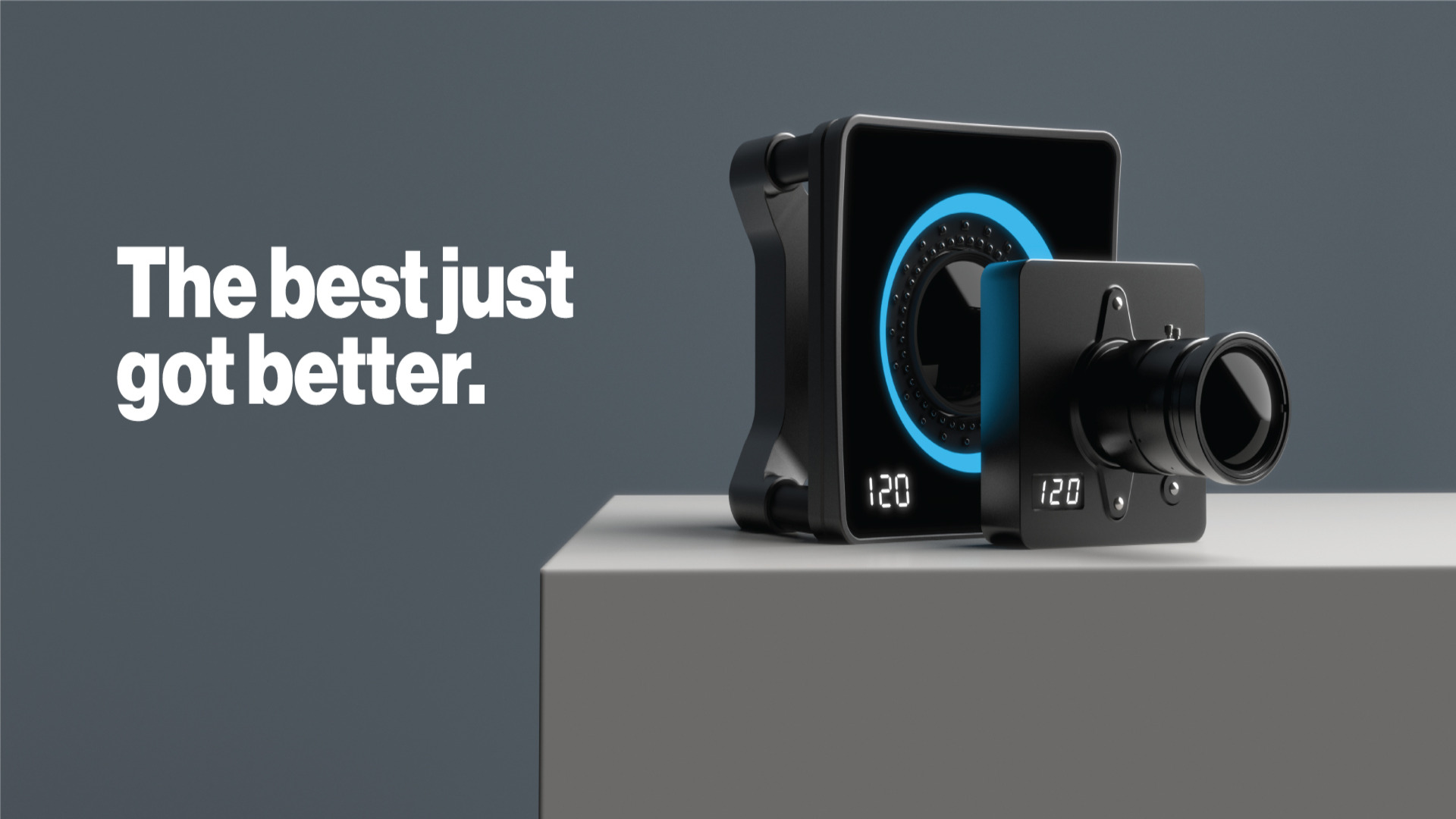

 12 MP resolution | +/- 0.1 mm 3D accuracy1 | 300 FPS native frame rate | 1000 FPS max frame rate2 The Primex 120 camera delivers exceptional precision, tracking markers at up to 300 feet with less than +/-0.10mm positional error. Its custom-engineered 18mm “fast glass” lens offers low distortion, high light transmission, and a broad 65° x 51° FOV. It supports passive and active markers, synchronized grayscale video, and flexible system configurations for high-accuracy 3D tracking in any environment. 1. 3D accuracy referenced is typical for a 30'×30' (9m×9m) tracking area. Range is estimated using a 14 mm marker with cameras at an exposure of 800, gain of 6, and the lowest f-stop. 2. Frame rate        Resolution             FOV (wide 18mm lens) 300 fps 4096×3072 65°×51° 480 fps 4096×1904 65°×33° 840 fps 2048×1072 65°×19° 1000 fps 2048×896 65°×16°

12.0 MP resolution | +/- 0.1 mm 3D accuracy1 | 300 FPS native frame rate | 1000 FPS max frame rate2 The Slimx 120 offers unmatched precision with 300 FPS capture, global shutter, and custom-designed low-distortion lenses. It tracks smaller markers at greater distances and pairs with other OptiTrack cameras for optimal configurations. Features include on-camera status LEDs, grayscale video with 3D overlay, Genlock/Time Code sync, and integration with Motive software for advanced motion capture workflows. 1. 3D accuracy referenced is typical for a 30'×30' (9m×9m) tracking area. Range is estimated using a 14 mm marker with cameras at an exposure of 800, gain of 6, and the lowest f-stop. 2. Frame rate     Resolution       FOV (standard 24mm lens)      FOV (wide 18mm lens) 300 fps 4096×3072 51°×39° 65°×51° 480 fps 4096×1904 51°×25° 65°×33° 840 fps 2048×1072 51°×14° 65°×19° 1000 fps 2048×896 51°×12° 65°×16°
