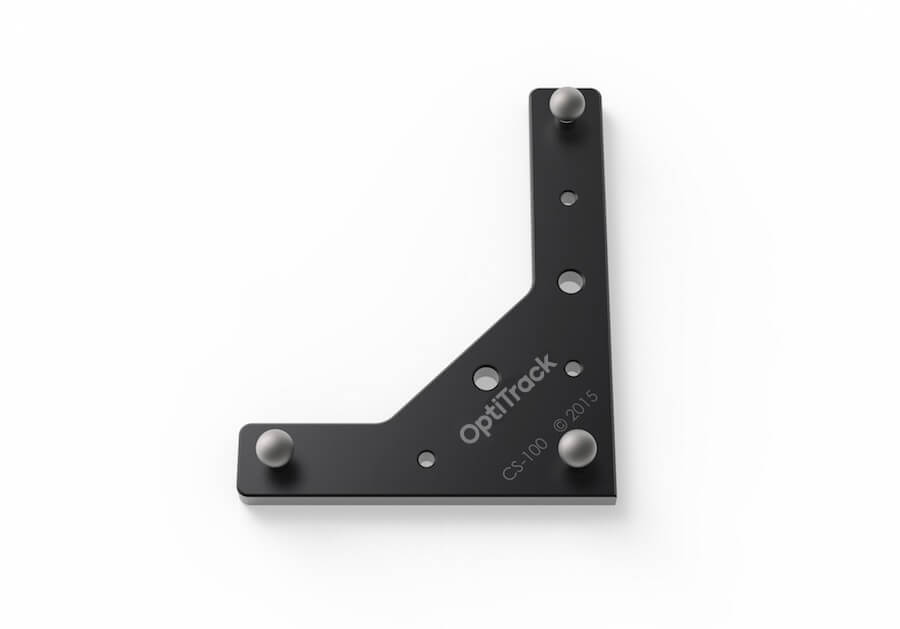

The CS-100 Calibration Square is designed for calibrating small, precise motion capture volumes. If you are using the CS-100 with Motive 1.7.2 or below, please follow the steps in this guide during every calibration.

Calibration Squares - Micron Series  The CS-200 Calibration Square was designed for flexibility and accuracy during system calibration.

Calibration Squares  The CS-400 Calibration Square was designed for flexibility and accuracy during system calibration. Adjustable leveling feet with individual vials enable level placement, even on uneven surfaces, while expandable tabs enable precise alignment of the calibration square with force plates. The CS-400 is also lightweight and compact, including fiberglass rods and a foldable frame, for easy storage and transportation.   Dimensions: 300 mm x 400 mm

Calibration Wands  This versatile OptiTrack Calibration Wand milled from high-grade aluminium is ideal for large and medium volumes with multiple configurable marker sets to adapt to your needs. The CW-500 Calibration Wand Kit includes:   Wand Handle: ¼-20 mount Handle extension thread Three M4 15.9 mm (5/8") markers with compatible posts for 500 mm position Three M4 12.7 mm (1/2") markers with compatible posts for 250 mm position Adjustable: vertical or horizontal wanding position Storage Box - foam liner

Calibration Wand - Micron Series  The Micron Series Calibration Wands and Squares are designed for extremely precise calibrations of small to medium sized capture volumes. Machined out of solid Invar, a material with a uniquely low coefficient of thermal expansion (CoE), the Wands remain calibrated throughout a wide temperature range. Each wand is factory calibrated and labeled. Calibration accuracy: standard deviation of 2 microns. The CWM-125 Calibration Wand Kit includes: Markers: 3 × 9.5 mm (3/8") Spacing: 125 mm Wand Handle: ¼-20 mount Handle extension thread Adjustable vertical or horizontal wanding position Storage box with foam liner

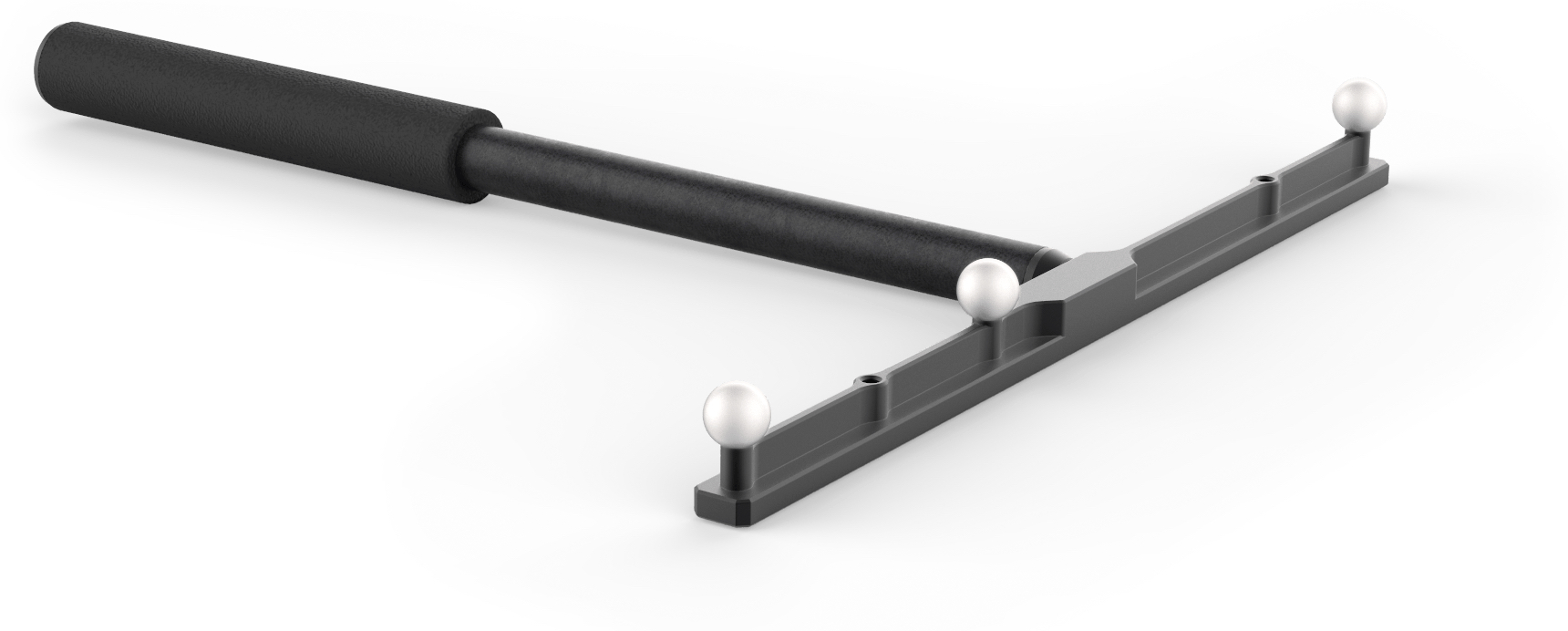

Calibration Wand - Micron Series  The Micron Series Calibration Wands and Squares are designed for extremely precise calibrations of small to medium sized capture volumes. Machined out of solid Invar, a material with a uniquely low coefficient of thermal expansion (CoE), the Wands remain calibrated throughout a wide temperature range. Each wand is factory calibrated and labeled. Calibration accuracy: standard deviation of 2 microns. The CWM-250 Calibration Wand Kit includes:   Markers - 3x12.7 mm (1/2") Spacing - 250 mm Wand Handle: ¼-20 mount Handle extension thread Adjustable: vertical or horizontal wanding position Storage Box - foam liner
